Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3650-24TS-E
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3650
Product Model: 3650-24T

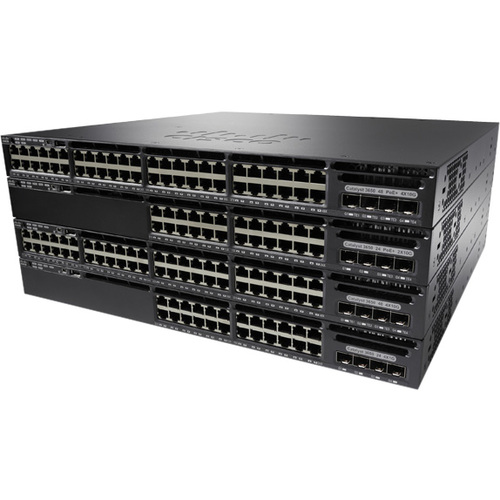

Product Name: Catalyst 3650-24T Layer 3 Switch
Marketing Information:
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: No
Stack Port: Yes
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Desktop
Height: 1.7″
Width: 17.5″
Depth: 17.6″
Weight (Approximate): 15.15 lb
Warranty
Limited Warranty: Lifetime
