Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3750G-16TD-S
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3750
Product Model: 3750G-16TD-S

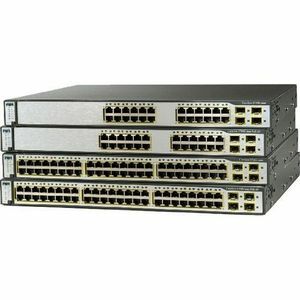

Product Name: Catalyst 3750G-16TD Stackable Gigabit Ethernet Switch
Marketing Information:
The Cisco Catalyst 3750G-16TD switch is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Port/Expansion Slot Details:
- 16 x Gigabit Ethernet Network
- 1 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 10Base-T
- 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 1
Expansion Slot Type: XENPAK
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Power Consumption: 180 W
Physical Characteristics
Form Factor:
- Rack-mountable
- Wall Mountable
- Desktop
Height: 1.7″
Width: 17.5″
Depth: 16.1″
Weight (Approximate): 12.50 lb
Miscellaneous
Package Contents:
- Catalyst 3750 Switch
- Catalyst 3750 Switch Hardware Installation Guide
- About the Catalyst 3750 Documentation flyer
- AC power cord
- One RJ-45-to-DB-9 adapter cable
Mounting kit containing:
- Four rubber feet for mounting the switch on a table
- Two 19-inch rack-mounting brackets
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- One RPS connector cover (for wall mounting)
- Two Phillips pan-head screws (for attaching the RPS cover)
- Four Phillips truss-head screws (for wall-mounting brackets)
- CAB-STACK-50CM: Cisco StackWise 50CM Stacking Cable
Warranty
Limited Warranty: Lifetime
