Overview
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3850-48XS-S
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3850
Product Model: WS-C3850-48XS

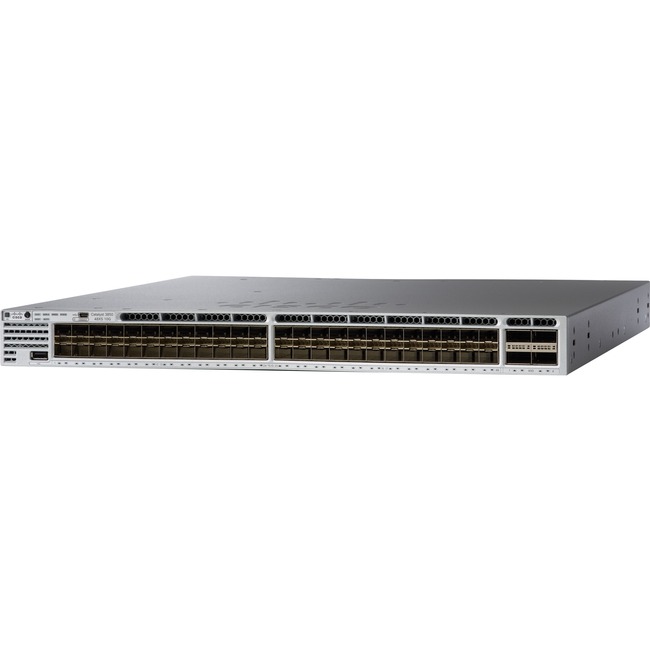

Product Name: Catalyst 3850 48 Port 10G Fiber Switch IP Base
Marketing Information: The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3850-48XS-S
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3850
Product Model: WS-C3850-48XS
Product Name: Catalyst 3850 48 Port 10G Fiber Switch IP Base
Marketing Information: The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet Expansion Slot
- 4 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 52
Expansion Slot Type:
- SFP+
- QSFP+
Number of SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Desktop
Height: 1.8″
Width: 17.5″
Depth: 20.1″
Weight (Approximate): 36.20 lb
Miscellaneous
Package Contents:
- Catalyst 3850 48 Port 10G Fiber Switch IP Base
- Power Supply
Environmentally Friendly: Yes
Environmental Certification:
- RoHS-5
- RoHS
Warranty
Limited Warranty: Lifetime
