Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C6800-8P10G
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco

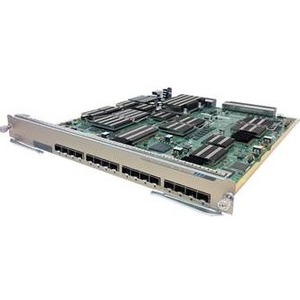

Product Name: Catalyst 6800 8-Port 10GE with Integrated DFC4 Spare
Marketing Information:
C6800 Family 8-Port 10-Gigabit Ethernet Fiber Module
The C6800 Family 8-port 10-Gigabit Ethernet fiber module is suitable for deployment in all aggregation and core networks.
- Two models: C6800-8P10G, an 8-port 10-Gigabit Ethernet Fiber Module with DFC4 (Figure 3), and C6800-8P10G-XL, an 8-port 10-Gigabit Ethernet Fiber Module with DFC4XL
- Backplane connection: 80-Gbps backplane bandwidth in Catalyst 6807-XL and 6500-E chassis
- Chassis/slot support: Can occupy slots 1-2 and 5-7 in a Cisco Catalyst 6807-XL. Can occupy any slot in Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E
- Supervisor engine: Compatible with Supervisor Engine 2T and Supervisor Engine 2TXL
- Distributed forwarding and performance: Comes equipped with a factory-installed DFC4-E or DFC4-EXL daughter card
The C6800 Family 8-port 10-Gigabit Ethernet Fiber module provides up to 40 10-Gigabit Ethernet fiber ports in a single Cisco Catalyst 6807-XL Switch chassis, or up to 80 10-Gigabit Ethernet fiber ports in a Cisco Catalyst 6807-XL Virtual Switching System (VSS) 2T. It also provides up to 88 10-Gigabit Ethernet fiber ports in a single Cisco Catalyst 6513-E Switch chassis or up to 176 10-Gigabit Ethernet fiber ports in a Cisco Catalyst 6500 Virtual Switching System (VSS) 2T.
Product Type: Expansion Module
Technical Information
Application/Usage:
- Data Networking
- Optical Network
I/O Expansions
Number of Total Expansion Slots: 8
Expansion Slot Type:
- SFP (mini-GBIC)
- SFP+
Physical Characteristics
Height: 1.7″
Width: 15.4″
Depth: 16.4″
Weight (Approximate): 11.02 lb
Miscellaneous
Compatibility: Cisco Catalyst 6800ia, 6807-XL, 6880-X, 6880-X-Chassis
Country of Origin: Malaysia
