Overview
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C6832-X-LE
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 6840-X
Product Model: C6832-X-LE

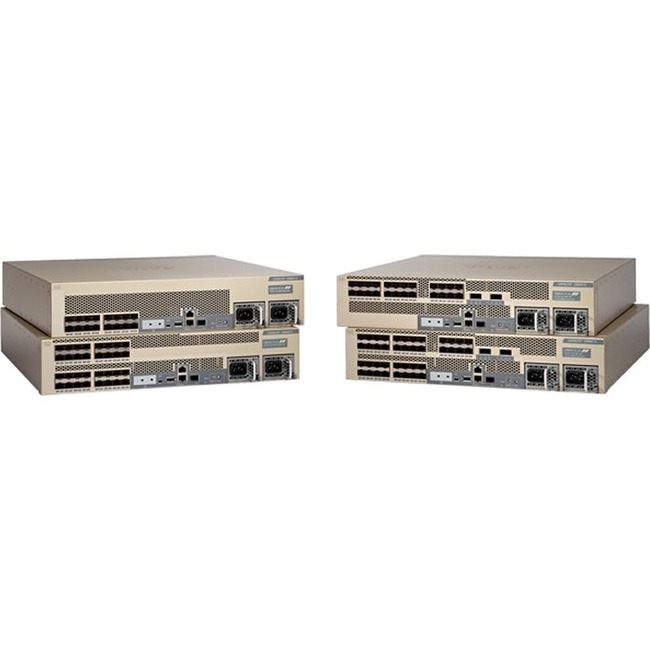

Product Name: Catalyst 6832-X-Chassis (Standard Tables)
Marketing Information: Network traffic has grown exponentially over the last several years, and this trend is expected to continue into the foreseeable future. By 2018, there will be 20+ billion networked devices, up from 10 billion in 2011. Business IP traffic is expected to reach 13.1 exabytes per month in 2016. Networks must be capable of scaling well beyond the needs of today to deal with the traffic of tomorrow while at the same time providing investment protection.
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C6832-X-LE
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 6840-X
Product Model: C6832-X-LE
Product Name: Catalyst 6832-X-Chassis (Standard Tables)
Marketing Information: Network traffic has grown exponentially over the last several years, and this trend is expected to continue into the foreseeable future. By 2018, there will be 20+ billion networked devices, up from 10 billion in 2011. Business IP traffic is expected to reach 13.1 exabytes per month in 2016. Networks must be capable of scaling well beyond the needs of today to deal with the traffic of tomorrow while at the same time providing investment protection.
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 32 x 10 Gigabit Ethernet Expansion Slot
- 8 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- 10 Gigabit Ethernet
- 40 Gigabit Ethernet
Network Technology:
- 10GBase-X
- 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 40
Expansion Slot Type:
- SFP+
- QSFP+
Number of SFP+ Slots: 32
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.5″
Width: 17.4″
Depth: 21.8″
Weight (Approximate): 33.95 lb
Warranty
Limited Warranty: 1 Year
