Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C1000-8T-2G-L
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 1000
Product Model: C1000-8T-2G-L

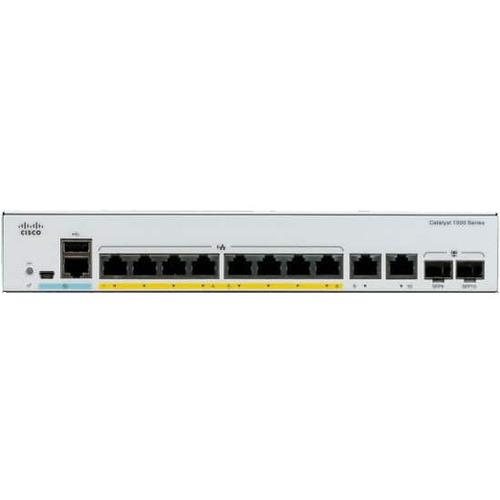

Product Name: Catalyst C1000-8T-2G-L Ethernet Switch
Marketing Information:
Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Product highlights
Cisco Catalyst 1000 Series Switches feature:
- 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
- 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
- Perpetual PoE+ support with a power budget of up to 740W
- CLI and/or intuitive web UI manageability options
- Network monitoring through sampled flow (sFlow)
- Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
- Compact fanless models available with a depth of less than 13 inches (33 cm)
- Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console acces
- Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 8 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet TP/SFP Combo
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-T
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Number of Power Supplies Installed: 1
Power Consumption: 14.26 W
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.7″
Width: 10.6″
Depth: 7.3″
Weight (Approximate): 3.97 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
Country of Origin: China
Warranty
Limited Warranty: Lifetime
