Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3650-12X48FD-S
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3650
Product Model: C3650-12X48FD-S

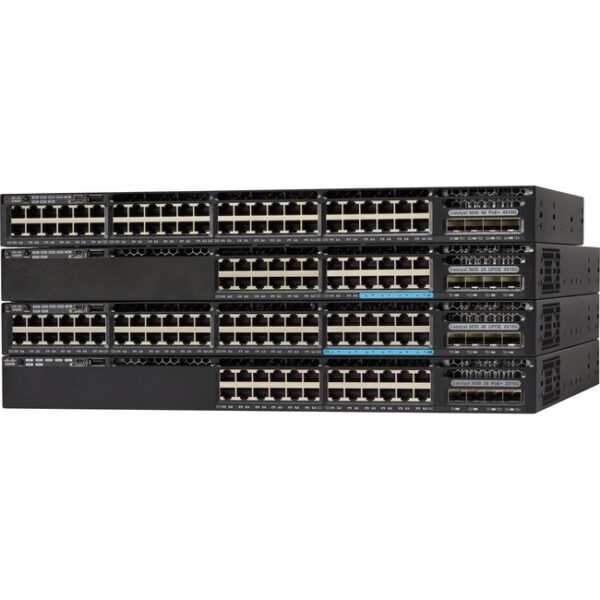

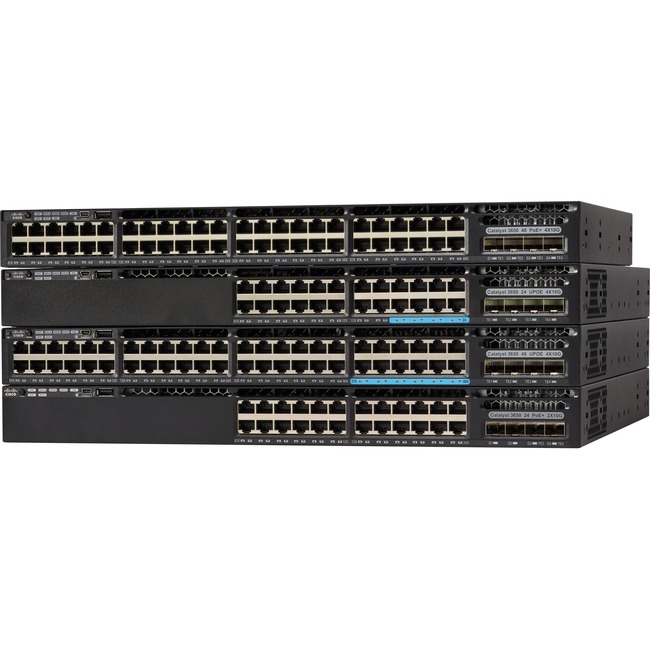

Product Name: Catalyst C3650-12X48FD-S Layer 3 Switch
Marketing Information:
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 36 x Gigabit Ethernet Network
- 12 x 10 Gigabit Ethernet Network
- 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- 10 Gigabit Ethernet
- Gigabit Ethernet
Network Technology:
- 10GBase-T
- 10GBase-X
- 10/100/1000Base-TX
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Standalone
Height: 1.7″
Width: 19.1″
Depth: 17.5″
Weight (Approximate): 17.75 lb
