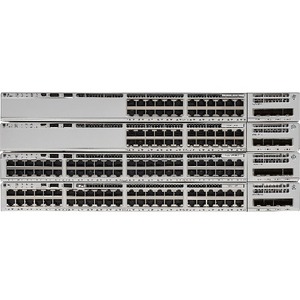

Cisco Catalyst C9200-24P Ethernet Switch

Extend intent-based networking everywhere

Cisco^® Catalyst^® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

Product overview

Product highlights

• Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
• Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
• Flexible downlink options with data, PoE+ or mGig
• Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
• UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
• Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
• Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
• Advanced network monitoring using Full Flexible NetFlow
• Cisco Software-Defined Access (SD-Access):
• Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
• Network assurance and improved resolution time through Cisco DNA Center
• Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
• Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
• ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet PoE+
• 1 x Uplink

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 1
Expansion Slot Type: Uplink Module
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 370 W
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2
Input Receptacles: IEC 60320 C16
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.5″
Depth: 13.8″
Weight (Approximate): 12.13 lb
Miscellaneous
Package Contents:

• Catalyst C9200-24P Ethernet Switch
• 1 x Power Supply
• AC Power Cord

Environmentally Friendly: Yes
Environmental Certification:

• RoHS-5
• WEEE

Warranty
Limited Warranty: Lifetime
