Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C9500-48Y4C-A
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 9500
Product Model: C9500-48Y4C

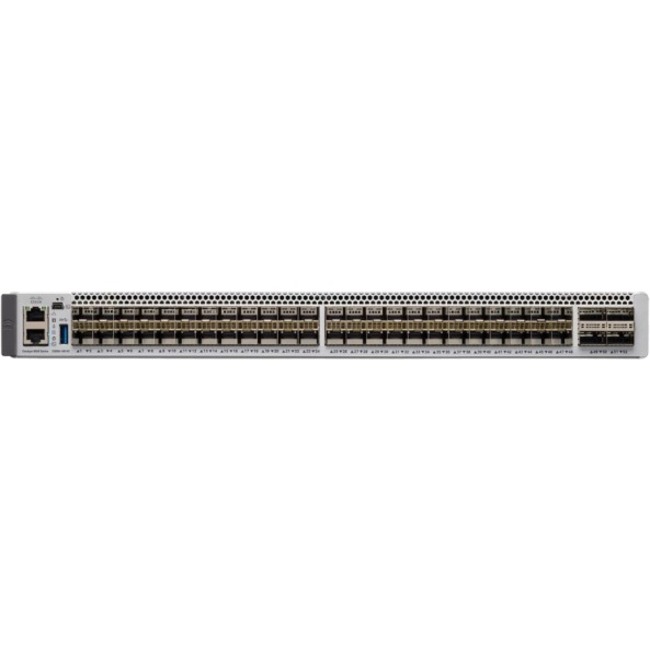

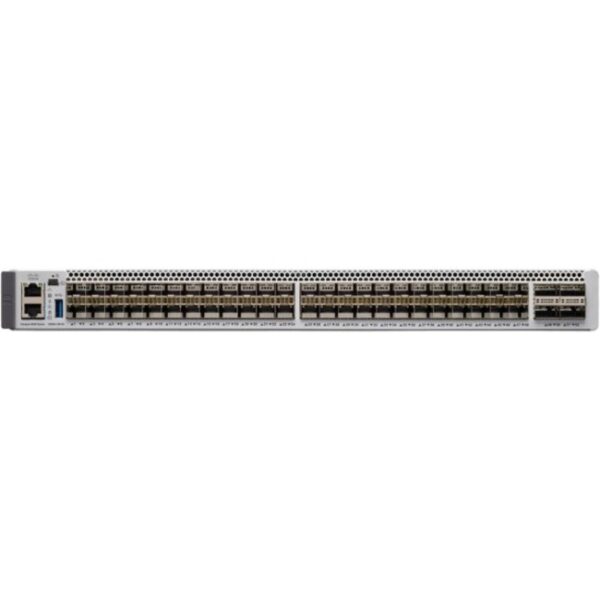

Product Name: Catalyst C9500-48Y4C-A Switch
Marketing Information:
High-density advanced services in a compact form factor
The Cisco Catalyst 9500 Series is the first 100/40-Gbps switch purpose built for the enterprise campus. It was recently recognized as CRN’s 2017 Overall Network Product of the Year. Designed for security, the Internet of Things (IoT), and the cloud, Catalyst 9500 fixed-core switches are high-density building blocks for a next-generation, intent-based network.
Features and benefits
Defense across the attack continuum
The advanced capabilities of Catalyst 9500 switches help protect your organization before, during, and after an attack. Reduce your attack surface with Cisco trustworthy systems and MACsec 256-bit encryption. Enhance malware detection and rapid threat containment.
IoT readiness
The series delivers IoT convergence with industry-leading scale and capabilities. You get trustworthy security; support for Audio Visual Bridging (AVB) and the IEEE 1588 standard; service discovery; and IoT classification.
Cloud readiness
Simplify, help secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the network edge and extends to where applications reside.
Foundational technology
These core switches support high-density 100 G, 40 G, 25 G, and availability patching; graceful insertion and removal (GIR); and NSF/SSO, plus redundant, platinum-rated power supplies and fans. They also support advanced routing and infrastructure services.
Business architecture optimization services
Make the most of your network investment using performance, benchmarking, deployment, and incident trending analytics to intelligently run your network.
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:
- 48 x 25 Gigabit Ethernet Expansion Slot
- 4 x 100 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- 25 Gigabit Ethernet
- 100 Gigabit Ethernet
Network Technology:
- 25GBase-X
- 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 52
Expansion Slot Type:
- SFP28
- QSFP28
Shared SFP Slot: No
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.5″
Depth: 18″
Weight (Approximate): 21.96 lb
