Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: CDB-8P
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Model: CDB-8P

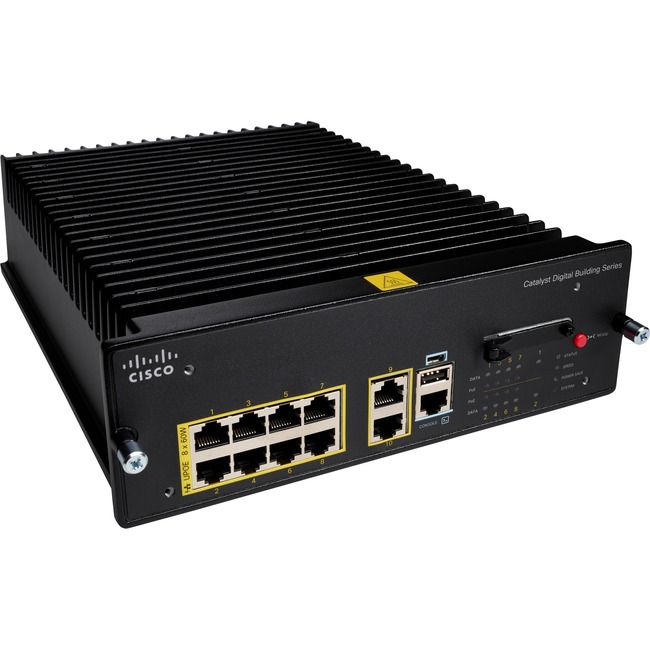

Product Name: Catalyst CDB-8P Ethernet Switch
Marketing Information:
Companies today are going digital in an effort to enable new customer experiences, empower workforce innovation, and build innovative business models powered by analytics. Buildings are central to this digital transformation, as buildings are where most traditional businesses run and operate from. For enhanced experiences and improved efficiencies in buildings, owners and facilities managers realize the value in interconnecting various building sub-systems, including lighting, HVAC, security, sensors and audio-video systems, which have historically remained stagnant, disparate and difficult to manage. Although the convergence of these isolated sub-systems is fundamental to digital transformation, it has remained complex and costly to implement thus far.
This complex problem changes their quiet, fanless design and compact footprint, the Cisco Catalyst Digital Building Series Switches offer flexible mounting options and open up a variety of network design and connectivity options. They can be deployed to support a variety of use cases, and are leaps ahead of the last generation of lighting and building technology enablers.
Cisco Catalyst Digital Building Series Switch Highlights
- 8 fast Ethernet ports and 2 gigabit copper uplink ports, with line-rate forwarding performance
- Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) support with up to 480W of power budget.
- Support for Layer 2 features, optimized for robust connectivity to lighting and other building IoT devices.
- Silent operation due to fanless design, which enhances reliability
- Enhanced Limited Lifetime Warranty (E-LLW)
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: No
Stack Port: No
Port/Expansion Slot Details:
- 8 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology:
- Fast Ethernet
- Gigabit Ethernet
Network Technology:
- 10/100Base-T
- 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor:
- Rack-mountable
- Cabinet Mount
- Ceiling Mount
Height: 2.8″
Width: 8.7″
Depth: 11.1″
Weight (Approximate): 9.65 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Country of Origin: Mexico
Warranty
Limited Warranty: Lifetime
