Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C2960L-24PS-LL
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 2960-L
Product Model: WS-C2960L-24PS-LL

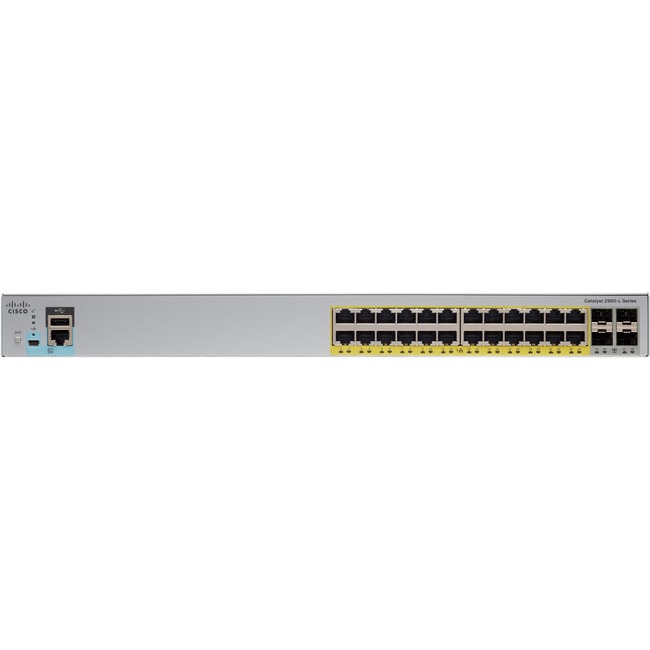

Product Name: Catalyst WS-C2960L-24PS-LL Ethernet Switch
Marketing Information:
Cisco Catalyst® 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOS® Software features.
Product Highlights
Cisco Catalyst 2960-L switches feature:
- 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding
- 2 or 4 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- Power over Ethernet Plus (PoE+) support with up to 370W of power budget
- Fanless operation and operational temperature up to 55°C for deployment outside the wiring closet
- Higher mean time between failure (MTBF) because they have no moving mechanical parts
- Less than 11.5-inch depth fit in use cases with space limitation
- Reduced power consumption and advanced energy management features
- RJ45 and USB console access for simplified operations
- Intuitive web UI for easy deployment and management
- Cisco IOS® Software features
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 4
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Height: 1.7″
Width: 17.5″
Depth: 10.5″
Weight (Approximate): 7.63 lb
Miscellaneous
Country of Origin: China
Warranty
Limited Warranty: Lifetime
