Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C2960L-24TQ-LL
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 2960-L
Product Model: WS-C2960L-24TQ-LL

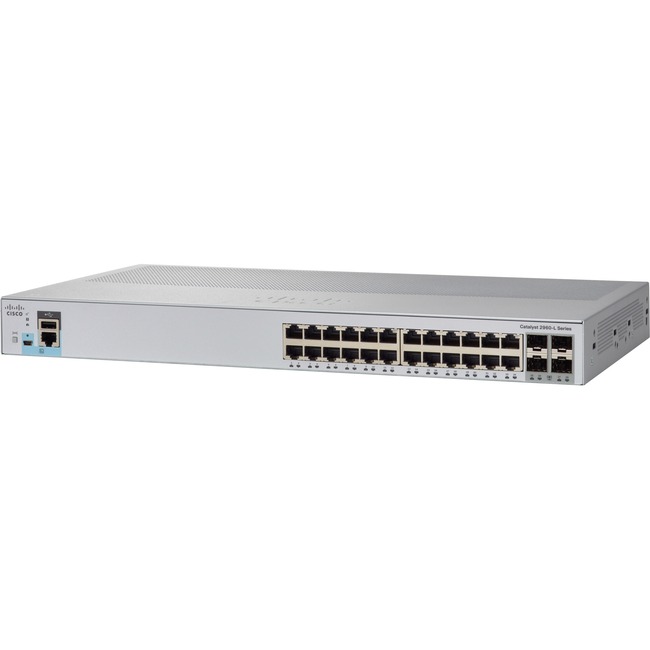

Product Name: Catalyst WS-C2960L-24TQ-LL Ethernet Switch
Marketing Information:
Cisco® Catalyst® 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide Layer 2 and basic Layer 3 enterprise-class access switching for branch offices, conventional workspaces, and out-of-the-wiring-closet applications. These Cisco IOS® Software based switches are fanless, easy to use, energy efficient, cost-effective, reliable, and secure.
Product highlights
Cisco Catalyst 2960-L switches feature:
- 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding
- 4 Enhanced Small Form-Factor Pluggable (SFP+) uplinks
- 2 or 4 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- Basic routing features: Static routing and Routing Information Protocol (RIP)
- Power over Ethernet Plus (PoE+) support with up to 370W of power budget
- Perpetual PoE provides uninterrupted power to connected devices even when the switch is booting
- Fanless operation and operational temperature up to 45°C for deployment outside the wiring closet
- Higher Mean Time Between Failure (MTBF) because they have no moving mechanical parts
- Less than 11.5-inch depth fit in use cases with space limitation
- Reduced power consumption and advanced energy management features
- RJ45 and USB console access for simplified operations
- Intuitive web UI for easy deployment and management
- Over-the-air configuration and management via Bluetooth interface
- Enhanced Limited Lifetime Warranty (E-LLW) offering next-business-day hardware replacement
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Height: 1.7″
Width: 17.5″
Depth: 9.5″
Weight (Approximate): 6.06 lb
Miscellaneous
Country of Origin: China
