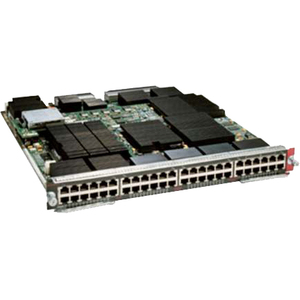

Cisco Gigabit Ethernet Interface Module

The Cisco Catalyst® 6500 Series Switches offer a variety of 10 Gigabit and Gigabit Ethernet modules which work in conjunction with the new Catalyst® 6500 Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL) to serve different needs in the campus and data center for enterprise, commercial, and service provider customers. The modules in this family include the new 6800 Series 16-port 10 Gigabit Ethernet Fiber Module,16-port 10 Gigabit Ethernet Copper Module, 48-port Gigabit Ethernet Copper Module, 48-port Gigabit Ethernet Fiber Module and 24-port Gigabit Ethernet Fiber Module. The 10 Gigabit Fiber Module supports 10GBASE-CX4, -SR, -LRM, -LX4, -LR, -ZR and -ER X2 fiber modules to provide operational distances up to 80 km over single-mode fiber. The 10 Gigabit Ethernet Copper Module supports RJ-45 connectors and operational distance of up to 55 m over Category 6 Unshielded Twisted Pair (UTP) copper cabling; 100 meters over Category 6 Shielded Twisted Pair (STP) copper cabling, 100 meters over Category 6A UTP & STP copper cabling, and 100 meters over Category 7 STP copper cabling. Similarly Gigabit Ethernet Copper Module supports RJ-45 connectors and provides operational distance of up to 100 meters over Category 5, 5E & 6 UTP copper cabling. The Gigabit Fiber Modules support pluggable optics and provide operational distances of up to 80 km over single-mode fiber and over multimode fiber.

Product Type: Interface Module
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Total Number of Ports: 48
Connector Type: RJ-45
Interfaces/Ports Details: 48 x RJ-45 10/100/1000Base-T LAN
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Physical Characteristics
Height: 1.2″
Width: 14.4″
Depth: 16″
Miscellaneous
Compatibility:

Cisco Catalyst Switch Chassis:

• 6500 Series
• 6500 E Series

Warranty
Limited Warranty: 90 Day
