Overview
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: EVM-HD-8FXS/DID=
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco

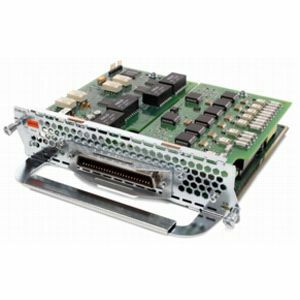

Product Name: High Density Voice/Fax Extension Module
Marketing Information: This Cisco High-Density Extension Module for voice and fax has 8 FXS and DID ports. Individual ports on the baseboard module can be configured for FXS or DID signaling. An on-premises FXS interface connects directly to a standard telephone, fax machine, or similar device and supplies ring, voltage, and dial tone. Signaling support available in FXS mode includes loop-start and ground-start. DID trunks from the central office can be connected to this Cisco High-Density Extension Module baseboard for off-premises connections. Signaling support available in DID mode includes immediate, delay dial, and wink start. Users plug in up to two expansion modules in any combination to increase the voice and fax capacity of this Cisco High-Density Extension Module baseboard.
Product Type: Expansion Module
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Total Number of Ports: 9
Connector Type: RJ-21
Interfaces/Ports Details:
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: EVM-HD-8FXS/DID=
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Name: High Density Voice/Fax Extension Module
Marketing Information: This Cisco High-Density Extension Module for voice and fax has 8 FXS and DID ports. Individual ports on the baseboard module can be configured for FXS or DID signaling. An on-premises FXS interface connects directly to a standard telephone, fax machine, or similar device and supplies ring, voltage, and dial tone. Signaling support available in FXS mode includes loop-start and ground-start. DID trunks from the central office can be connected to this Cisco High-Density Extension Module baseboard for off-premises connections. Signaling support available in DID mode includes immediate, delay dial, and wink start. Users plug in up to two expansion modules in any combination to increase the voice and fax capacity of this Cisco High-Density Extension Module baseboard.
Product Type: Expansion Module
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Total Number of Ports: 9
Connector Type: RJ-21
Interfaces/Ports Details:
- 1 x RJ-21
- 8 x FXS/DID
Miscellaneous
Compatibility:
Hardware Compatibility:
- Cisco 2821 Router
- Cisco 2851 Router
- Cisco 3825 Router
- Cisco 3845 Router
