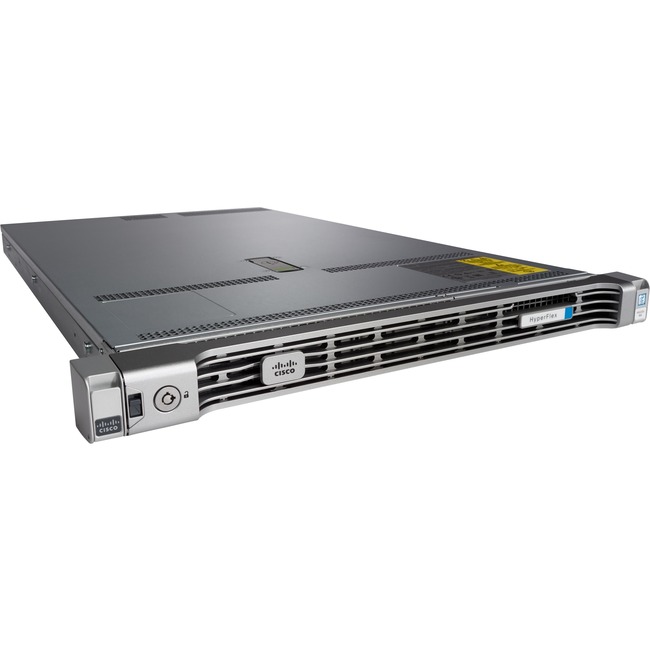

Cisco HyperFlex Barebone System – 1U Rack-mountable – 2 x Processor Support

MFR#

HX220C-M4S

Low stock, check availability

Product Type: Barebone System
Product Family: HyperFlex HX220c M4
Brand Name: Cisco
Rack Height: 1U
Form Factor: Rack-mountable
Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to quote cart

Ask a Product Specialist

Looking for something else or have a question about this product?
Call 470-361-1180|Email
Get a Quote
Overview
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: HX220C-M4S
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: HyperFlex
Product Series: HX220c M4
Product Name: HyperFlex HX220c M4 Barebone System
Marketing Information: Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™).
Product Type: Barebone System
Processor
Number of Nodes: 1
Number of Processors Supported: 2
Processor Supported: Xeon
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Chipset Model: C610
Memory
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Number of Total Memory Slots: 24
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: No
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200e
Graphics Memory Capacity: 8 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 8
Number of Internal 2.5″ Bays: 8
Number of Total Expansion Slots: 2
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Power Description
Input Voltage:

  • 120 V AC
  • 230 V AC

Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 770 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.7″
Width: 19″
Depth: 31″
Weight (Approximate): 37.92 lb
Warranty
Limited Warranty: 3 Year

Specifications
Weight 37.92 kg
Dimensions 19 × 1.7 cm
Product Type

Barebone System
Product Family

HyperFlex HX220c M4
Brand Name

Cisco
Rack Height

1U
Form Factor

Rack-mountable
Ethernet Technology

10 Gigabit Ethernet
Memory Technology

DDR4 SDRAM
Number of Total Memory Slots

24
Maximum Power Supply Wattage

770 W
Controller Type

12Gb/s SAS
Maximum Memory Supported

1.50 TB
Memory Standard

DDR4-2133/PC4-17000
Graphics Controller Model

G200e
Total Number of USB Ports

2
Processor Supported

Xeon
Limited Warranty

3 Year
Number of USB 3.0 Ports

2
Graphics Memory Capacity

8 MB
