Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: HXAF240C-M5SX
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: HyperFlex
Product Series: HXAF240c M5

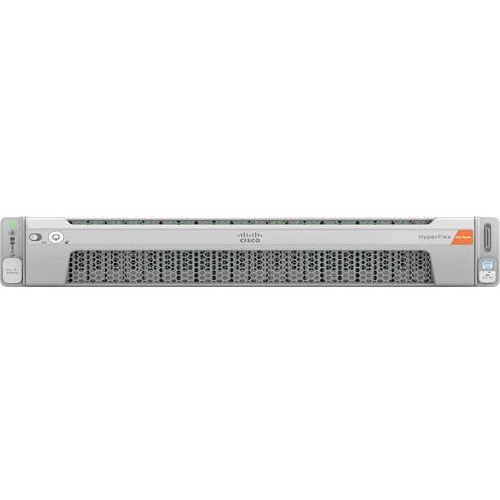

Product Name: HyperFlex HXAF240c M5 Barebone System
Marketing Information: Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
Packaged Quantity: 1
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Supported:
- Xeon Gold
- Xeon Silver
- Xeon Bronze
- Xeon Platinum
Chipset
Chipset Manufacturer: Intel
Chipset Model: C620
Memory
Maximum Memory Supported: 3 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Number of Total Memory Slots: 24
Storage
Optical Drive Type: No
Controllers
Controller Type:
- Serial ATA/600
- 12Gb/s SAS
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: Pilot 4
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 24
Number of Internal 2.5″ Bays: 24
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Product Color: Silver
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.4″
Width: 19″
Depth: 30.2″
Weight (Approximate): 57.50 lb
