Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: IE-2000-4S-TS-G-L
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: IE-2000
Product Model: IE-2000-4S-TS-G-L

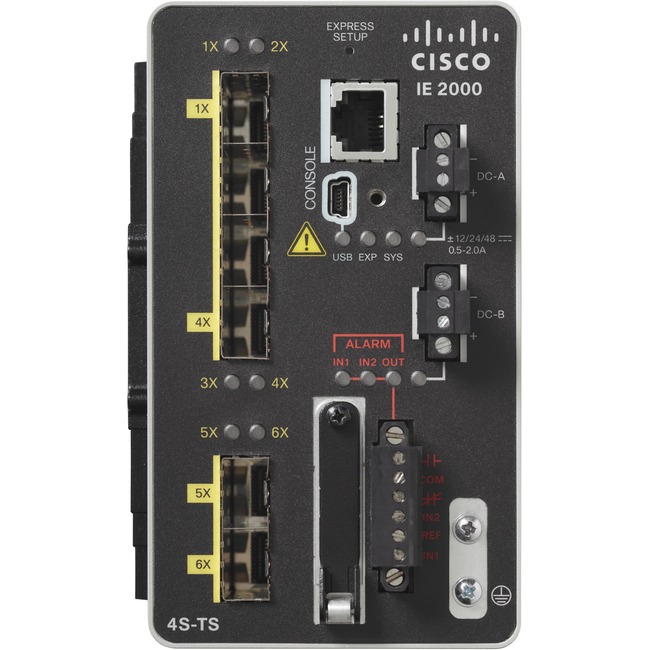

Product Name: IE-2000-4S-TS-G-L Ethernet Switch
Marketing Information:
The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP).
Product Details
The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:
- Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor
- Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
- Dual-input DC power supply, alarm relays, DIN rail mount
- Industrial Power over Ethernet (PoE) solution
- Conformal coating available
- Swappable SD flash card and mini-USB connector
- Industrial environmental compliance and certifications
- Industrial partner applications: Ethernet/IP and PROFINET
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: Yes
Port/Expansion Slot Details:
- 4 x Fast Ethernet Expansion Slot
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- Fast Ethernet
- Gigabit Ethernet
Network Technology:
- 100Base-X
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 6
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Form Factor:
- Desktop
- Rail-mountable
Height: 5.1″
Width: 3.2″
Depth: 4.2″
Weight (Approximate): 2.69 lb
