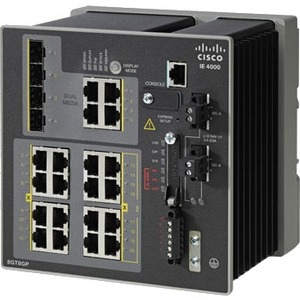

Cisco IE-4000-16T4G-E Ethernet Switch

General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: IE-4000-16T4G-E
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: 4000
Product Model: IE-4000-16T4G-E
Product Name: IE-4000-16T4G-E Ethernet Switch
Marketing Information: The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:

• 16 x Fast Ethernet Network
• 4 x Gigabit Ethernet Uplink

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• Fast Ethernet
• Gigabit Ethernet

Network Technology:

• 10/100Base-T
• 1000Base-X

I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rail-mountable
Height: 6.1″
Width: 6.1″
Depth: 5.1″
Weight (Approximate): 6.35 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

• China RoHS
• RoHS

Warranty
Limited Warranty: 5 Year
