Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCS-CPU-E5-2609
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Xeon
Product Series: E5-2600
Product Model: E5-2609

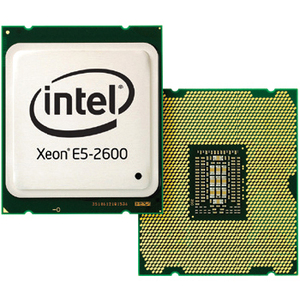

Product Name: Xeon Quad-core E5-2609 2.4GHz Processor Upgrade
Marketing Information:
Based on the latest generation Intel� microarchitecture (codenamed Sandy Bridge), the Intel� Xeon� processor E5-2600 series is the first Intel� platform to offer solutions ranging from eight-core/singlesocket up to 16-core/two-socket, providing significant performance improvement over previous-generation Intel Xeon processors. For example, the eight-core Intel� Xeon� processor E5-2658 delivers nearly 68 percent performance gain over the previous-generation six-core Intel� Xeon� processor E5645 within a similar platform thermal profile. Increased memor capacity is provided with four memory channels per processor and up to 1600 MHz DDR3 memory.
Packaged Quantity: 1
Product Type: Processor Upgrade
Technical Information
Processor Manufacturer: Intel
Processor Core: Quad-core (4 Core)
Clock Speed: 2.40 GHz
QuickPath Interconnect: 6.40 GT/s
L2 Cache: 1 MB
L3 Cache: 10 MB
64-bit Processing: Yes
Process Technology: 32 nm
Processor Socket: Socket R LGA-2011
Power Description
Input Voltage: 1.4 V DC
Thermal Design Power: 80 W
Environmental Conditions
Thermal Specification: 158°F (70°C)
Physical Characteristics
Width: 1.8″
Depth: 2.1″
Miscellaneous
Compatibility:
- Cisco C220 M3 UCS High-Density Rack Server
- Cisco C240 M3 UCS High-Density Rack Server
- Intel S2600GZ Server Board
- Intel S2600GL Server Board
- Intel S2600JF Server Board
- Intel S2600JFQ Server Board
- Intel S2600CP4 Server Board
- Intel S2600COE Server Board
- Intel S2600JFF Server Board
- Intel S2600CP2IOC Server Board
- Intel S2600IP4L Server Board
- Intel W2600CR2L Workstation Board
- Intel S2600CP2 Server Board
- Intel S2600CO4 Server Board
- Intel S2600IP4 Server Board
- Intel W2600CR2 Workstation Board
- Intel S2600WP Server Board
- Intel S2600WPQ Server Board
- Intel S2600WPF Server Board
- Intel S2600CP4IOC Server Board
- Intel S2600COEIOC Server Board
- Intel S2600CP2J Server Board
- Intel R1304GZ4GC Server System
- Intel R1208GZ4GCSAS Server System
- Intel R2216GZ4GC Server System
- Intel R2208GL4GS Server System
- Intel R2312GL4GS Server System
- Intel R2208GZ4GC10G Server System
- Intel R2224GZ4GCSAS Server System
- Intel R2312GZ4GCSAS Server System
- Intel H2312JFJR Server System
- Intel H2216JFKR Server System
- Intel H2216JFQKR Server System
- Intel P4304CR2LFKN Workstation System
- Intel R2224IP4LHPC Server System
- Intel R2312IP4LHPC Server System
- Intel P4308CP4MHGC Server System
- Intel P4208CP4MHGC Server System
- Intel P4224IP4LHKC Server System
- Intel P4308IP4LHKC Server System
- Intel H2216WPKR Server System
- Intel H2216WPQKR Server System
- Intel R2216GZ4GCLX Server System
- Intel R2208IP4LHPC Server System
- Intel R2308IP4LHPC Server System
- Intel H2312JFFJR Server System
- Intel H2216JFFJR Server System
- Intel H2312WPFJR Server System
- Intel H2216WPFJR Server System
- Intel P4308IP4LHJCL Server System
- Intel R1304BB4GS9 Server System
- Intel R1208GZ4GC Server System
- Intel R1208GL4DS Server System
- Intel R2208GZ4GC Server System
- Intel R2308GZ4GC Server System
- Intel R2308GL4GS Server System
- Intel H2312JFQKR Server System
- Intel H2312JFQJR Server System
- Intel H2216JFJR Server System
- Intel H2216JFQJR Server System
- Intel P4304CR2LFJN Workstation System
- Intel P4304CR2LFGN Workstation System
- Intel R2216IP4LHPC Server System
- Intel P4308CP4MHEN Server System
- Intel P4216IP4LHKC Server System
- Intel P4216IP4LHJC Server System
- Intel P4208IP4LHGC Server System
- Intel P4308IP4LHJC Server System
- Intel P4308IP4LHGC Server System
- Intel H2312WPJR Server System
- Intel H2312WPQJR Server System
- Intel H2312WPKR Server System
- Intel H2312WPQKR Server System
- Intel H2216WPJR Server System
- Intel H2216WPQJR Server System
- Intel R2208GZ4IS Server System
- Intel P4304CR2LFJNL Workstation System
- Intel R2000BB4GS9 Server System
