Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: DS-C9148-16P-K9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: MDS 9100
Product Model: MDS 9148
Product Name: MDS 9148 Multilayer Fibre Channel Switch
Marketing Information:

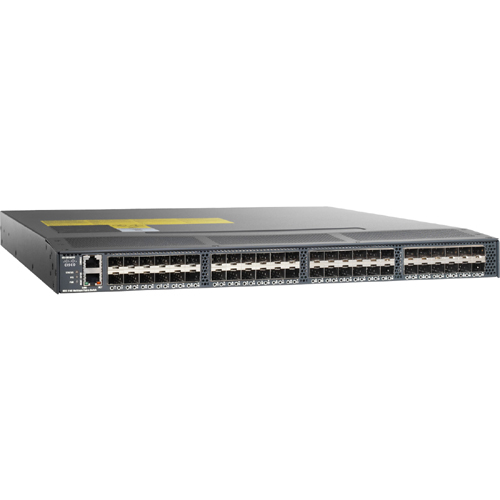

The Cisco MDS 9148 Multilayer Fabric Switch (Figure 1) is a high-performance, flexible, cost-effective platform providing high-density, line-rate 8-Gbps ports for storage networking deployments in small, medium-sized, and large enterprise environments. The Cisco MDS 9148, based on a purpose-built “switch-on-a-chip” application-specific integrated circuit (ASIC), offers outstanding value by providing high-availability, security, and ease of use at a costeffective price in a compact one-rack-unit (1RU) form factor. With the flexibility to expand from 16 to 48 ports in 8- port increments, the Cisco MDS 9148 offers the densities required to scale from an entry-level departmental switch to top-of-the-rack switch to edge connectivity in enterprise SANs. The Cisco MDS 9148 delivers a nonblocking architecture, with all 48 1/2/4/8-Gbps ports operating at line rate concurrently.
Product Type: Fibre Channel Switch
Interfaces/Ports
Number of Fibre Channel Ports: 16
Media & Performance
Data Transfer Rate: 8.48 Gbit/s
I/O Expansions
Expansion Slot Type: SFP+
Management & Protocols
Manageable: Yes
Power Description
Redundant Power Supply: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.8″
Width: 17.2″
Depth: 18.9″
Weight (Approximate): 22 lb
Miscellaneous
Package Contents:
- MDS 9148 Multilayer Fibre Channel Switch
- Accessory kit
