Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: DS-X9648-1536K9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco

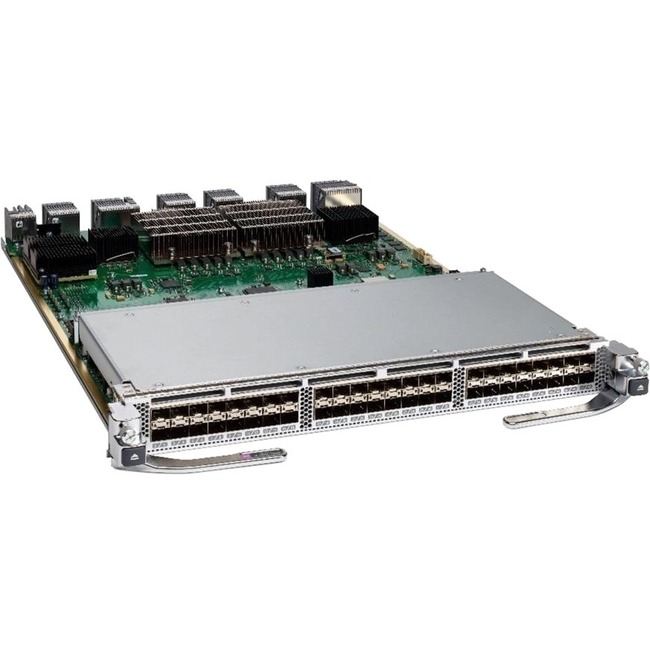

Product Name: MDS 9700 48-Port 32-Gbps Fibre Channel Switching Module
Marketing Information: The MDS 9700 48-Port 32-Gbps Fibre Channel Switching Module enables administrators to scale and consolidate SAN deployments with fewer hardware components. Your SAN administrators can consolidate workloads from hundreds of high-performance virtual machines and scale them with incremental updates as your SAN grows while protecting your existing investment.
This switching module ships with a built-in analytics engine. The engine can analyze real-time Fibre Channel exchanges and report on various metrics in detail, enabling comprehensive and timely monitoring of any potential performance problems among SAN edge devices. The on-board network processing unit (NPU) in the module allows I/O-level metrics to be computed at every switch. The NPU can monitor all flows on all ports at line rate. The NPU examines every exchange passing through the 32-Gbps application-specific integrated circuit (ASIC) to capture flow metrics such as exchange completion time, maximum number of outstanding exchanges, data access latency, read and write I/O operations per second (IOPS), throughput, logical unit number (LUN) access pattern (sequential or random), and I/O block sizes.
The switching module is hot swappable and compatible with 4-, 8-, 16-, and 32-Gbps Fibre Channel interfaces. This module also supports hot-swappable Enhanced Small Form-Factor Pluggable (SFP+) transceivers. Individual ports can be configured with Cisco 32-, 16-, and 8-Gbps SFP+ transceivers. Each port supports 500 buffer credits for exceptional extensibility without the need for additional licenses. With the Cisco Enterprise Package license, up to 8191 buffer credits can be allocated to an individual port, enabling full link bandwidth over long distances with no degradation in link utilization.
The 32-Gbps Fibre Channel switching module also provides existing features such as predictable performance, high availability, advanced traffic management capabilities, integrated VSAN and IVR, resilient high-performance ISLs, hardware-assisted slow-drain support, comprehensive security frameworks, fault detection and isolation of errored packets, and sophisticated diagnostics.
Product Type: Switching Module
Technical Information
Application/Usage:
- Switching Fabric
- Data Networking
Interfaces/Ports
Total Number of Ports: 48
Interfaces/Ports Details: 48 x Fiber Channel Network
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 32 Gigabit Ethernet
Network Technology: Fiber Channel
Physical Characteristics
Form Factor: Hot-swappable
Height: 1.8″
Width: 15.9″
Depth: 21.8″
Weight (Approximate): 17.50 lb
Miscellaneous
Compatibility:
Cisco MDS 9700 Series Multilayer Directors
Country of Origin: Malaysia
