Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: R2XX-PL002
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: 8708EM2

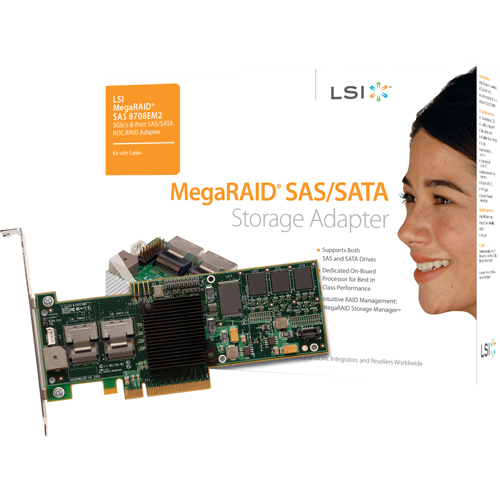

Product Name: MegaRAID 8708EM2 8-port SAS RAID Controller
Marketing Information:
The eight-port MegaRAID SAS 8708EM2 provides high-performance data protection for internal SAS systems using up to 32 SAS or SATA hard drives. Leveraging the smallest standard PCI Express MD2 form factor, this adapter is a perfect fit for 1U and 2U servers and space-limited storage environments. Featuring the LSISAS1078 ROC, a x8 PCI Express host interface and 667MHz DDRII, the MegaRAID SAS 8708EM2 is a high-performance RAID adapter with advanced data protection capabilities for low-cost server and nearline applications.
Product Type: SAS Controller
Technical Information
Host Interface: PCI Express x8
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 6
- 10
- 50
- 60
Maximum Data Transfer Rate: 300
Interfaces/Ports
Total Number of SAS Ports: 2
Number of SAS Ports (Internal): 2
SAS Connector Details: 2 x SFF-8087
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 2.5″
Width: 6.6″
Miscellaneous
Package Contents:
- MegaRAID 8708EM2 8-port SAS RAID Controller
- 256MB Write Cache
Platform Supported: PC
