Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: NCS-5002
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: 5000
Product Model: NCS-5002

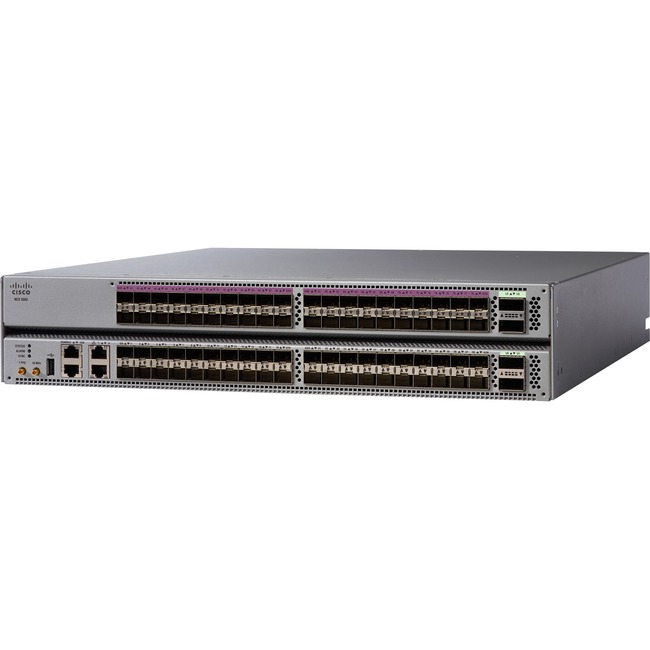

Product Name: NCS 5002 Routing System
Marketing Information:
Cloud Scale for Metro Aggregation Networks
The Cisco® Network Convergence System 5000 Series offers a high-density, small-form-factor MPLS aggregation router for metro aggregation. It is designed to economically scale large enterprise, over-the-top (OTT), and service provider data center networking architectures.
Product Overview
The Cisco NCS 5000 Series is an extension to Cisco’s routing platform portfolio, enabling service providers and MPLS-enabled data center architectures to offer elastic networks with improved business agility and simplified operations to deliver high-bandwidth mobile, video, and cloud services.
It can also operate as an extension shelf of Cisco ASR 9000 Series Aggregation Services Routers using network virtualization (nV) technology, consolidating multiple layers in the network and dramatically reducing operational costs.
Product Type: Router Chassis
Interfaces/Ports
Powerline: No
Management Port: Yes
I/O Expansions
Number of Total Expansion Slots: 84
Network & Communication
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-X
VoIP Supported: No
Power Description
PoE (RJ-45) Port: No
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.4″
Width: 17.4″
Depth: 19.3″
Weight (Approximate): 33 lb
Miscellaneous
Country of Origin: United States
Warranty
Limited Warranty: 1 Year
