Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N3K-C3064PQ-10GX
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Nexus
Product Series: 3000
Product Model: 3064

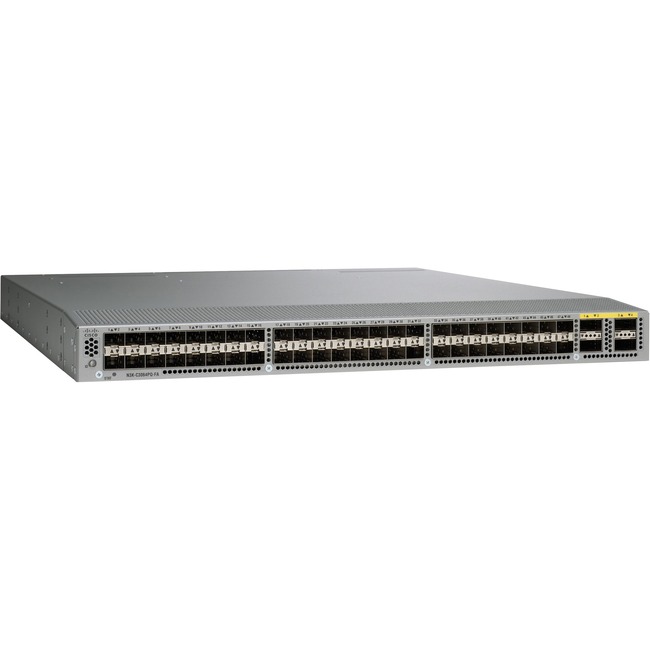

Product Name: Nexus 3064 Switch
Marketing Information:
The Cisco Nexus 3064 supports a wide variety of 1, 10, and 40 Gigabit Ethernet connectivity options. 1 and 10 Gigabit Ethernet connectivity is achieved using SFP+ transceivers in the first 48 ports, and 40 Gigabit Ethernet connectivity is achieved by using QSFP+ transceivers in the last 4 ports.
QSFP+ technology allows smooth transition from 10 to 40 Gigabit Ethernet infrastructures in data centers. The Cisco Nexus 3064 supports connectivity over copper and fiber cables, providing excellent physical-layer flexibility. For low-cost cabling, copper-based 40-Gbps Twinax cables can be used, and for longer cable reaches, short-reach optical transceivers are excellent.
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: No
Modular: No
Stack Port: No
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet Expansion Slot
- 4 x 40 Gigabit Ethernet Expansion Slot
I/O Expansions
Number of Total Expansion Slots: 52
Expansion Slot Type:
- QSFP+
- SFP+
Number of SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 19.7″
Weight (Approximate): 20.50 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
Warranty
Limited Warranty: 1 Year
