Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N3K-C31108TC-V
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Nexus
Product Series: 3000
Product Model: 31108TC-V

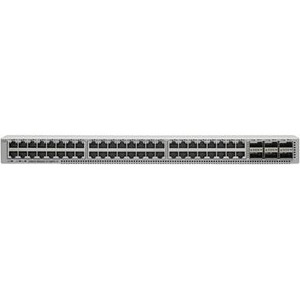

Product Name: Nexus 31108TC-V Switch
Marketing Information: The Cisco Nexus® 3100-V series is the latest addition to the industry’s widely deployed Cisco Nexus 3100 platform. The Cisco Nexus 3100-V platform consists of high-density, low-power-consumption, and low-latency fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise applications, service provider hosting, high-performance computing (HPC), and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/40/100-Gbps connectivity with improved port density and scalability in compact 1-rack-unit (1RU) form factors.
The Cisco Nexus 3100-V platform runs the industry-leading Cisco® NX-OS Software operating system, which helps ensure continuous availability and sets the standard for mission-critical data center environments. The platform is designed for programmable fabric, which offers flexibility, mobility, and scalability for service providers and infrastructure-as-a-service (IaaS) and cloud providers; and for programmable networks, which automate configuration and management for customers who want to take advantage of the DevOps operating model and tool sets. It is well suited for data centers that require cost-effective, power-efficient, line-rate Layer 2 and 3 top-of-rack (ToR) switches. These switches also support forward and reverse airflow (port-side exhaust and port-side intake) schemes with AC and DC power inputs.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet Network
- 6 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- 40 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10GBase-T
- 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type: QSFP+
Shared SFP Slot: No
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 22.3″
Weight (Approximate): 22 lb
