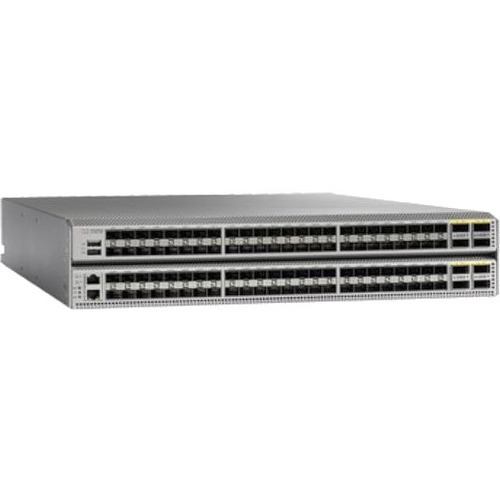

Cisco Nexus 31128PQ, 96 SFP+ ports, 8 QSFP+ ports, 2RU switch

The Cisco Nexus® 31128PQ Switch is a dense, high-performance Layer 2 and 3, 10- and 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Nexus 3100 switches are the second-generation Cisco Nexus 3000 series switches and offer improved port density, scalability, and features compared to the first-generation switches. The Cisco Nexus 31128PQ comes in a compact two-rack-unit (2RU) form factor and runs the industry-leading Cisco® NX-OS Software operating system, providing customers comprehensive features and functions that are widely deployed. It supports both forward and reverse (port side exhaust and port side intake) airflow schemes with AC and DC power inputs. The Cisco Nexus 31128PQ is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 access or leaf switch.

Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:

• 8 x 40 Gigabit Ethernet Expansion Slot
• 96 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:

• 10 Gigabit Ethernet
• 40 Gigabit Ethernet

Network Technology:

• 10GBase-X
• 40GBase-X

I/O Expansions
Number of Total Expansion Slots: 104
Expansion Slot Type:

• SFP+
• QSFP+

Number of SFP+ Slots: 96
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.4″
Width: 23.7″
Depth: 17.4″
Weight (Approximate): 22.20 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
Warranty
Limited Warranty: 1 Year
