Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N3K-C3132Q-V
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Nexus
Product Series: 3000
Product Model: 3132Q-V

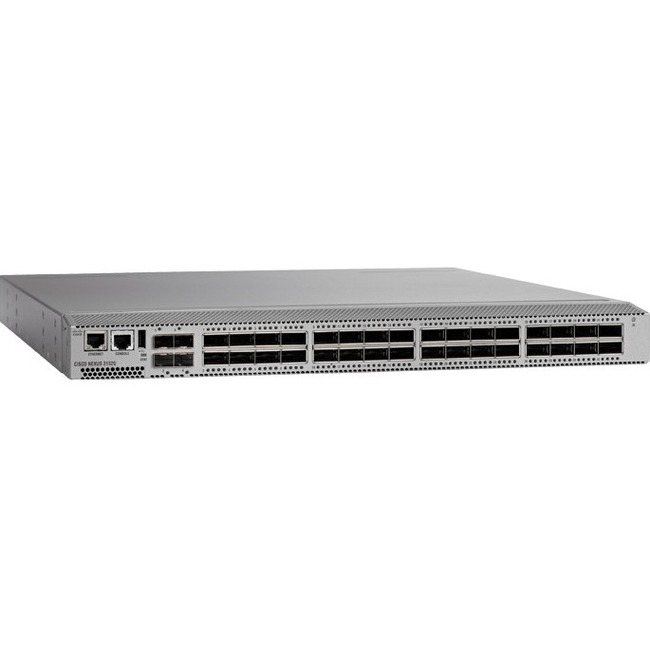

Product Name: Nexus 3132Q-V Switch
Marketing Information:
The Cisco Nexus® 3132Q Switch is a dense, high-performance Layer 2 and 3, 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Nexus 3100 switches are the second-generation Cisco Nexus 3000 series switches and offer improved port density, scalability, and features compared to the first-generatio switches. The Cisco Nexus 3132Q comes in a compact one-rack-unit (1RU) form factor and runs the industry-leading Cisco® NX-OS Software operating system, providing customers comprehensive features and functions that are widely deployed. It supports both forward and reverse (port side exhaust and port side intake) airflow schemes with AC and DC power inputs. The Cisco Nexus 3132Q is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 access or leaf switch.
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 32 x 40 Gigabit Ethernet Expansion Slot
- 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- 10 Gigabit Ethernet
- 40 Gigabit Ethernet
Network Technology:
- 10GBase-X
- 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 36
Expansion Slot Type:
- QSFP+
- SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 19.7″
Weight (Approximate): 21.50 lb
Warranty
Limited Warranty: 1 Year
