Overview
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N3K-C3264Q
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Nexus
Product Series: 3000
Product Model: 3264Q

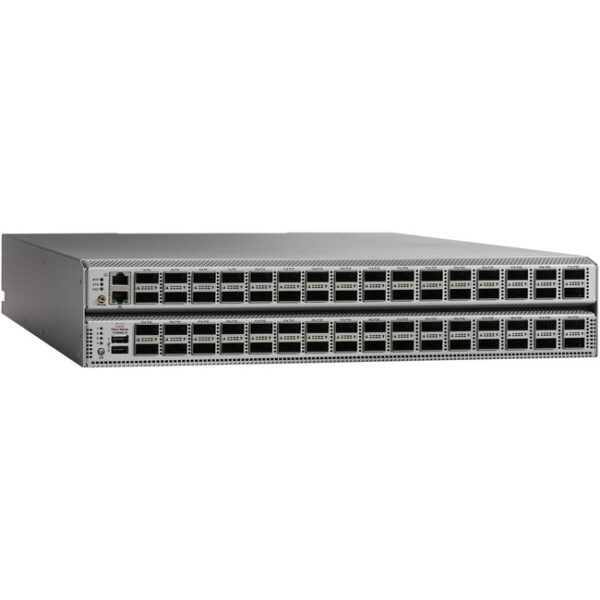

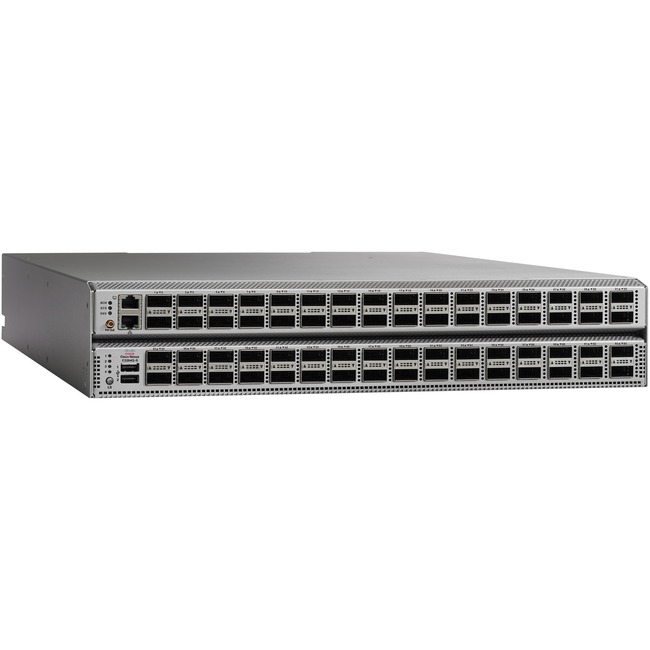

Product Name: Nexus 3264Q Switch with 64 ports of QSFP
Marketing Information: The Cisco Nexus® 3264Q Switch is a Low Latency, ultra-high-density, power-efficient, 40-Gbps switch designed for the data center. This compact, two-rack-unit (2RU) model offers wire-rate Layer 2 and Layer 3 switching on all ports with latency around 400ns. It runs the same modern Cisco® NX-OS image that also supports the Cisco Nexus 9000 Series Switches. It provides a comprehensive feature set and simplifies image management. The robust programmability features help enable organizations to run today’s applications while also preparing them for demanding and changing application needs such as big data, cloud services, and virtualization.
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 64 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 40 Gigabit Ethernet
Network Technology: 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 64
Expansion Slot Type: QSFP+
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.4″
Width: 22.3″
Depth: 17.4″
Weight (Approximate): 32.80 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
Warranty
Limited Warranty: 1 Year
