Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N7K-SUP1
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: N7K-SUP1

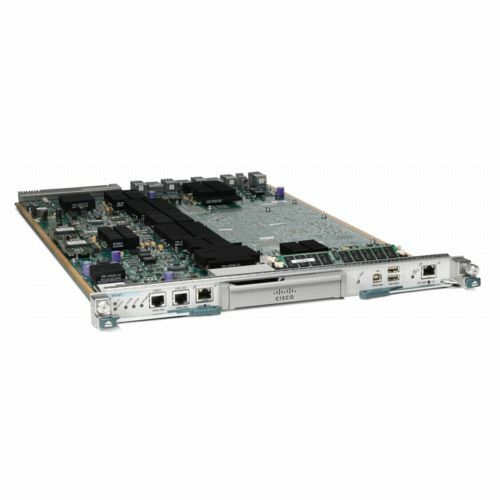

Product Name: Nexus 7000 Series Supervisor Module
Marketing Information:
The Cisco Nexus 7000 Series Supervisor Module is designed to deliver scalable control plane and management functions for the Cisco Nexus 7000 Series chassis. It is based on a dual core processor that scales the control plane by harnessing the flexibility and power of the dual cores. The supervisors control the Layer 2 and 3 services, redundancy capabilities, configuration management, status monitoring, power and environmental management, and more. It provides centralized arbitration to the system fabric for all line cards.
Product Type: Expansion Module
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Total Number of Ports: 4
Connector Type:
- RJ-45
- USB
Interfaces/Ports Details:
- 2 x RJ-45 10/100/1000Base-T Management
- 1 x RJ-45 Management
- 3 x USB
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 1
Physical Characteristics
Height: 1.2″
Width: 15.3″
Depth: 21.9″
Weight (Approximate): 9.90 lb
Miscellaneous
Compatibility:
Cisco Nexus 7000 Series Switches
