Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N9K-C9272Q
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Nexus
Product Series: 9000
Product Model: 9272Q

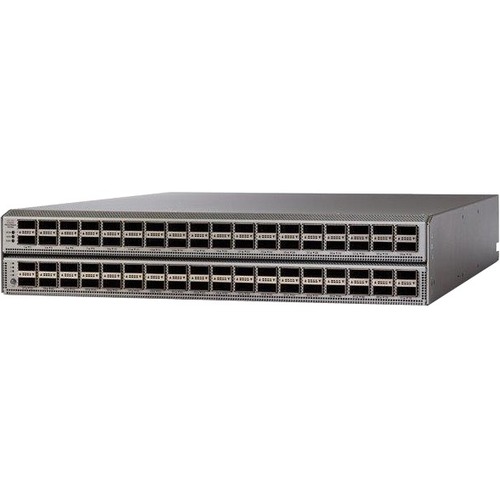

Product Name: Nexus 9272Q Switch
Marketing Information:
The Cisco Nexus® 9200 platform is the latest addition to the Cisco Nexus 9000 Series Switches. The Cisco Nexus 9200 platform consists of industry leading ultra-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco® NX-OS Software operating system, the Nexus 9200 switch is designed for the programmable fabric, which offers flexibility, mobility and scale for service providers and IaaS/cloud providers; and for the programmable network which automates configuration and management for customers who want to take advantage of the DevOps type of operation model and toolsets.
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 72 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 40 Gigabit Ethernet
Network Technology: 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 72
Expansion Slot Type: QSFP+
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.5″
Width: 17.4″
Depth: 24.5″
Weight (Approximate): 24.60 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: 1 Year
