Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N9K-C93108TC-EX
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Nexus
Product Series: 9300-EX
Product Model: 93108TC-EX

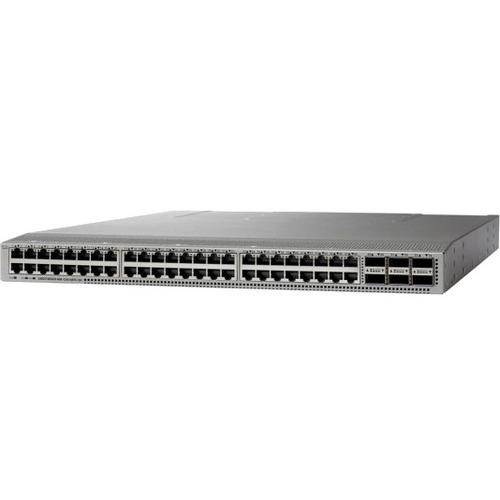

Product Name: Nexus 93108TC-EX Switch
Marketing Information: The Cisco Nexus® 9300-EX platform is the next generation of fixed Cisco Nexus 9000 Series Switches. The new platform, based on Cisco’s Cloud Scale ASIC supports cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platform is built on modern system architecture designed to provide high performance to meet the evolving needs of highly scalable data centers and growing enterprises. Cisco Nexus 9300-EX platform switches offer a variety of interface options to transparently migrate existing data centers from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25 Gbps at the server, and from 10- and 40-Gbps speeds to 50 and 100 Gbps at the aggregation layer.
The platform provides investment protection for customers, delivering large buffers, immense Layer 2 and Layer 3 scalability, and performance to meet the changing needs of highly virtualized, automated cloud environments in data centers. The platform hardware supports Cisco® Data Center Interconnect (DCI) features, enabling flexible workload mobility and LAN and SAN convergence.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet Network
- 6 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- 100 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10GBase-T
- 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type: QSFP+
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 22.5″
Weight (Approximate): 17.70 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: 1 Year
