Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N9K-C9336PQ
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Nexus
Product Series: 9300
Product Model: 9336PQ

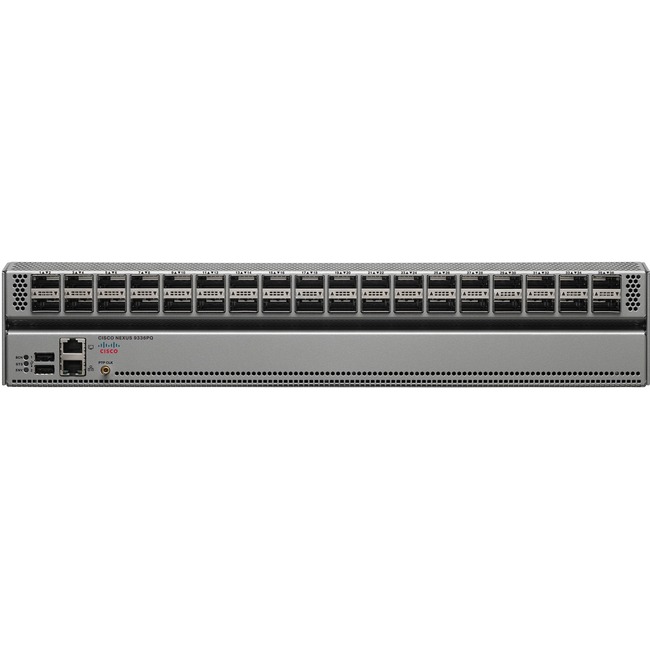

Product Name: Nexus 9336 ACI Spine Switch with 36p 40G QSFP
Marketing Information:
Industry shifts are redefining IT at all levels. On-premise IT consumption models are shifting to cloud-based services. IT as a service (IaaS) is supplanted by applications as a service. Separate development and operations are moving toward integrated development and operations (DevOps). Device-centric management models are migrating to application-centric management.
Business agility requires application agility, so IT teams need to provision applications in hours instead of months. Resources need to scale up (or down) in minutes, not hours.
Traditional approaches take a siloed operational view, with no common operational model for the application, network, security, and cloud teams. A common operational model delivers application agility, simplified operations, assured performance, and scale.
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: No
Modular: No
Stack Port: No
Port/Expansion Slot Details: 36 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology: 40 Gigabit Ethernet
Network Technology: 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 36
Expansion Slot Type: QSFP
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.5″
Width: 17.4″
Depth: 22.3″
Weight (Approximate): 34.40 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS-6
- 80 Plus Platinum
Warranty
Limited Warranty: 1 Year
