Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: N9K-C9396PX-FA-L3
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Nexus
Product Series: 9000
Product Model: 9396PX

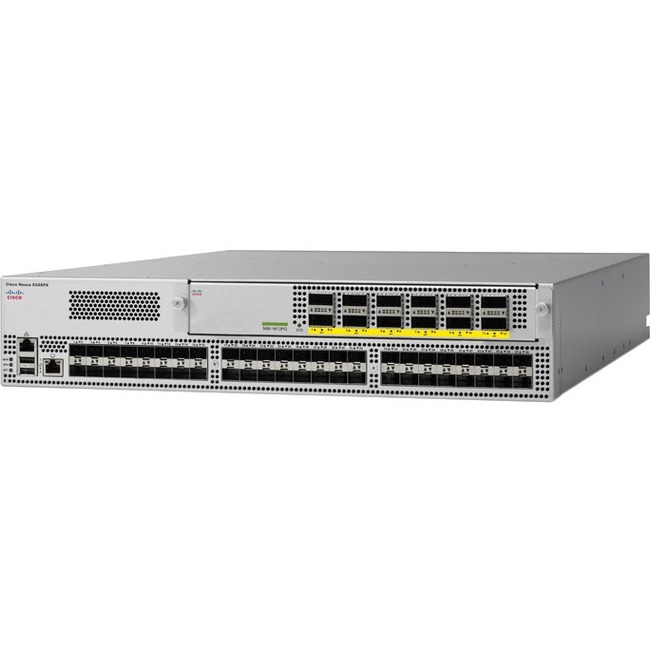

Product Name: Nexus 9396PX Layer 3 Switch
Marketing Information:
Organizations everywhere recognize that changing application environments are creating new demands for the IT infrastructure that supports them. Application workloads are deployed across a mix of virtualized and nonvirtualized server and storage infrastructure, requiring a network infrastructure that provides consistent connectivity, security, and visibility across a range of bare-metal, virtualized, and cloud computing environments:
- Application instances are created dynamically. As a result, the provisioning, modification, and removal of application network connectivity needs to be dynamic as well.
- Business units demand accelerated application deployments. IT departments have to provide shared IT infrastructure to address time-to-market needs and to increase their return on investment (ROI).
- With organizations deploying a mix of custom, open source, and off-the-shelf commercial applications, IT departments must manage both security and quality of service (QoS) for environments that support multitenancy.
- Applications have been transitioning over time to a less monolithic, scale-out, multinode model. IT infrastructure that supports this model must scale with the speed of business and support both 10 and 40 Gigabit Ethernet connectivity.
Product Type: Layer 3 Switch
Interfaces/Ports
Uplink Port: Yes
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet Expansion Slot
- 12 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology:
- 10 Gigabit Ethernet
- 40 Gigabit Ethernet
Network Technology:
- 10GBase-X
- 40GBase-X
I/O Expansions
Number of Total Expansion Slots: 60
Expansion Slot Type:
- SFP+
- QSFP+
Shared SFP Slot: No
Number of SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Height: 3.5″
Width: 22.5″
Depth: 17.5″
Weight (Approximate): 22.45 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: 1 Year
