Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: SRW2024
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: SRW2024

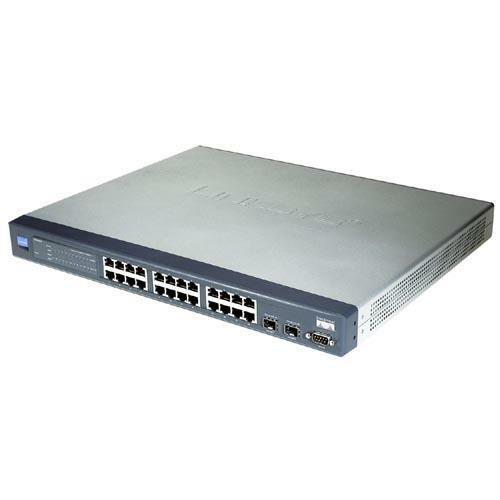

Product Name: SRW2024 24-port webView Gigabit Ethernet Switch
Marketing Information:
This new rackmount switch delivers non-blocking, wire speed switching for your 10, 100, and 1000 megabit network clients, plus multiple options for connecting to your network backbone. Twenty-four 10/100/1000 ports wire up your workstations, while the two mini GBIC ports allow future expansion to alternate transmission media like optical fiber for your backbone.
It features WebView monitoring and configuration via your web browser, making it easy to manage the 64 VLANs and up to 8 trunking groups.The non-blocking, wire-speed, full-duplex switching forwards packets as fast as your network can deliver them.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 22
Port/Expansion Slot Details:
- 22 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Physical Characteristics
Height: 1.8″
Width: 16.9″
Depth: 13.8″
Weight (Approximate): 7.35 lb
Warranty
Limited Warranty: 5 Year
