Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: SRW2024P
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: SRW2024P

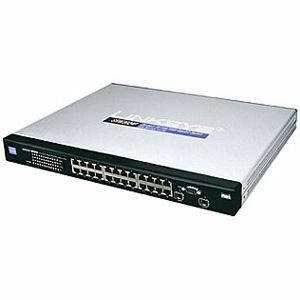

Product Name: SRW2024P 24-port WebView Gigabit Ethernet Switch with PoE
Marketing Information:
The Cisco SRW2024P 24-Port Gigabit Switch allows you to expand your network securely. Web-based configuration of the switch is secured using SSL. User access is verified using 802.1X security with a RADIUS authentication mechanism and can also be controlled using MAC-based filtering.
Extensive quality of service (QoS) features make the solution ideal for real-time applications such as voice and video. The four priority queues, together with the weighted round-robin and strict priority scheduling techniques, facilitate efficient coexistence of real-time traffic with data traffic, allowing each to meet its QoS needs. Individual users or applications can be prioritized above others using various class of service options – by port, Layer 2 priority (802.1p), and Layer 3 priority (type of service [ToS] or differentiated services code point [DSCP[). Intelligent broadcast and multicast storm control minimize and contain the effect of these types of traffic on regular traffic. Internet Group Management Protocol (IGMP) snooping limits bandwidth-intensive video traffic to only the requestors without flooding all users. Incoming traffic can be policed and outgoing traffic can be shaped, allowing you to control network access and traffic flow.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 10/100Base-TX
- 1000Base-T
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Physical Characteristics
Height: 1.7″
Width: 16.9″
Depth: 13.8″
Weight (Approximate): 7.28 lb
Miscellaneous
Package Contents:
- SRW2024P 24-port WebView Gigabit Ethernet Switch with PoE
- AC Power Cord
- Rack Mounting Kit with brackets and hardware
- CD with User Guide in PDF Format
- On-line Registration Card
- Console Cable
