Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: R200-1120402
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: C200
Product Model: UCS C200 M1

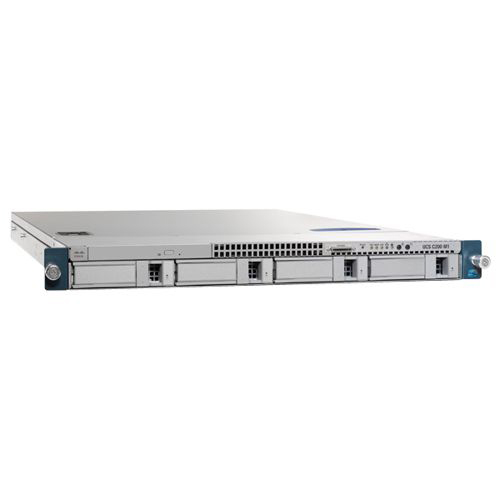

Product Name: UCS C200 M1 Barebone System
Marketing Information:
Cisco UCS C200 M1 Barebone System extends unified computing innovations to an industry-standard form factor to help reduce total cost of ownership (TCO) and increase business agility. Designed to operate both in standalone environments and as part of the Cisco Unified Computing System, this server barebone employs Cisco technology to help customers handle the most challenging workloads.
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Supported: Xeon
Memory
Maximum Memory Supported: 96 GB
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 12
Storage
Total Hard Drive Capacity Supported: 4 TB
Optical Drive Type: DVD-Writer
Controllers
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of 3.5″ Bays: 4
Number of Total Expansion Slots: 2
Interfaces/Ports
Total Number of USB Ports: 4
Network (RJ-45): Yes
Power Description
Number of Power Supplies Installed: 1
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.7″
Width: 16.9″
Depth: 27.8″
