Cisco UCS E-Series Network Compute Engine (NCE)

Cisco UCS E-Series Network Compute Engines

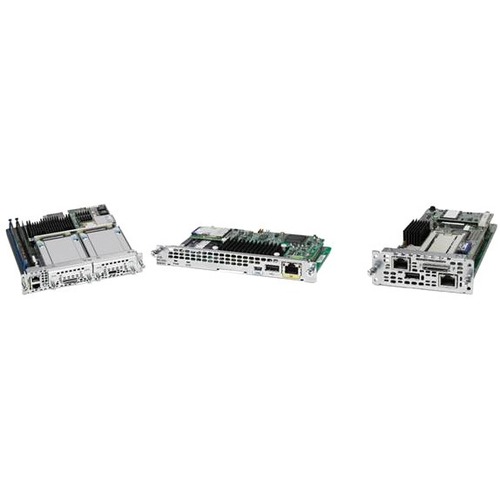

The Cisco UCS E-Series NCEs are computing modules that are both price and power optimized. They come in three form factors: a single-wide service module (SM), a double-wide enhanced high-speed WAN interface card (EHWIC) for the ISR G2 platform, and a network interface module (NIM) form factor for the 4000 Series ISR platform.

• The service module fits into the ISR G2 and 4000 Series ISR networking platforms. It delivers a high-performance, power-efficient Intel Pentium processor B925C (4-MB cache and 2.00 GHz) product family with two cores in combination with integrated remote lights-out management.
• The double-wide EHWIC fits in the ISR G2 networking platform only. It runs the Intel Atom processor C2358 (1-MB cache and 1.70 GHz) and is available in multiple versions with a variety of DRAM and hard-disk capacities.
• The NIM fits in the 4000 Series ISR only. It runs the Intel Atom processor C2518 (1-MB cache and 1.70 GHz) and is available in multiple versions with a variety of DRAM and hard-disk capacities.

The zero-footprint form factor of the NCEs make them excellent for hosting Cisco network applications and other lightweight applications in your branch offices.
Product Type: Network Processing Engine
Technical Information
Application/Usage:

• Data Networking
• Processor
• Network Management

Interfaces/Ports
Total Number of Ports: 4
Connector Type:

• RJ-45
• USB 2.0

Interfaces/Ports Details:

• 1 x USB 2.0
• 1 x RJ-45 Management
• 3 x RJ-45 10/100/1000Base-T LAN

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Physical Characteristics
Height: 1.3″
Width: 3.5″
Depth: 0.3″
Weight (Approximate): 0.64 lb
Miscellaneous
Compatibility: Cisco 4000 Series Integrated Services Routers
