Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-X4748-UPOE+E
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: WS-X4748-UPOE+E

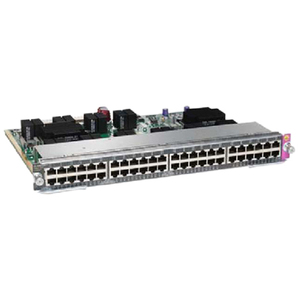

Product Name: WS-X4748-UPOE+E Service Module
Marketing Information:
The Cisco Catalyst 4500E Series 48-port Gigabit Ethernet line cards provide high-performance 10/100/1000 switching. Two types of E-Series line cards are available, based on the per-slot bandwidth: 47xx line cards that drive 48 Gbps per slot, and 46xx line cards that drive 24 Gbps per slot. The Cisco Catalyst 4500 48-port 10/100/1000 PoEP E-Series 47xx line card provides standard IEEE 802.3at PoEP support on all 48 ports simultaneously. All series 47xx line cards support standard IEEE 802.1AE encryption and Cisco TrustSec in hardware. The Cisco Catalyst 4500 48-port 10/100/1000 line cards are available in four versions: Data Only, PoE, PoEP, and UPOE.
Product Type: Service Module
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Total Number of Ports: 48
Connector Type: RJ-45
Interfaces/Ports Details: 48 x RJ-45 10/100/1000Base-T UPoE LAN
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Physical Characteristics
Height: 1.2″
Width: 14.3″
Depth: 10.8″
Miscellaneous
Compatibility:
Cisco Catalyst 4500E Series Switches
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
Warranty
Limited Warranty: Lifetime
