Manufacturer: Dell Technologies
Manufacturer Part Number: 430-4421
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell
Product Model: 57810S

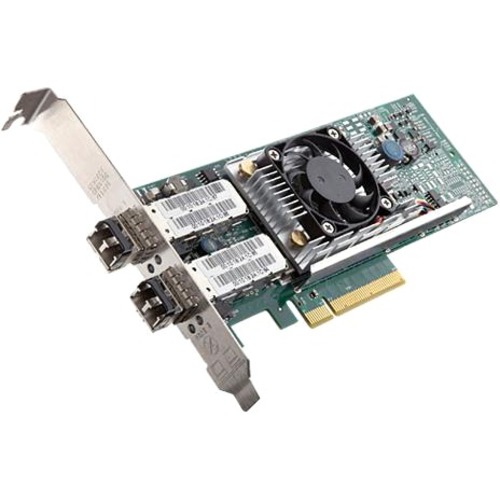

Product Name: Broadcom 57810S Dual Port 10Gb BASE-T Server Adapter
Marketing Information: The Broadcom® 57810S from Dell™ is a dual-port 10GBASE-T Converged Network Adapter. It leverages Broadcom’s long-standing industry leadership in Ethernet, providing the highest level of performance, efficiency, and scalability for the enterprise data center. For more effective utilization of the 10GbE bandwidth, the Broadcom 57810-based CNA offers Switch Independent Partitioning which enables segmentation of each 10GbE port into four virtualports, with flexible allocation of bandwidth to each port. This allows IT organizations to improve resource utilization while lowering infrastructure and operational costs. Virtualization, cloud computing, High-Performance Computing (HPC), convergence, and clustering initiatives are increasing workload demands.
The Broadcom 57810S-based CNA is the solution of choice for workload-intensive computing environments, providing a reliable, high-performance 10GbE connectivity solution. It increases network flexibility, scalability, and capacity with Switch Independent Partitioning, segmenting 10GbE ports and reallocating their bandwidth and resources to address application’s performance requirements. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
Product Type: 10Gigabit Ethernet Card
Interfaces/Ports
Host Interface: PCI Express 2.0 x8
Total Number of Ports: 2
Number of Network (RJ-45) Ports: 2
Media & Performance
Media Type Supported: Twisted Pair
Network & Communication
Network Technology: 10GBase-T
Physical Characteristics
Form Factor: Plug-in Card
Miscellaneous
Device Supported: Server
