Manufacturer: Dell Technologies
Manufacturer Part Number: DMPU108E-G01
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell
Product Line: MergePoint Unity
Product Model: DMPU108e

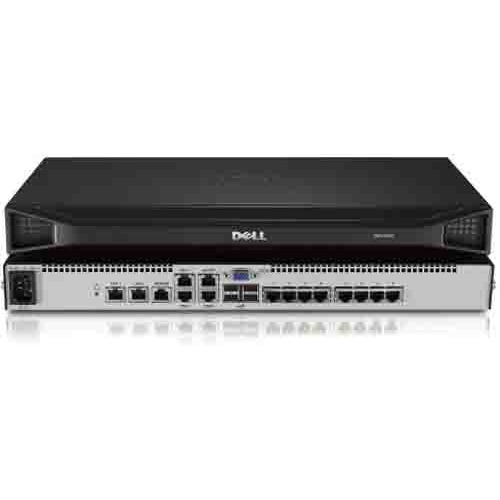

Product Name: Digital KVM Switch DMPU108e – TAA Compliant
Marketing Information:
From a single central console, the Dell™ Digital KVM switch, engineered by Avocent, provides out-of-band access to devices in the rack even when the network is down or when the device OS crashes. Unlike software alternatives, digital KVMs are uniquely capable of bringing a new server up from bare metal, diagnosing and restoring a failing device, updating firmware or enabling BIOS-level access, and patching a device independent of the state of the managed device or network.
The Digital switches give users the ability to securely access manage traditional servers remotely via their keyboard, video and mouse ports as well as the ability to manage these servers, and other devices like storage heads or network switches, regardless of whether the server or network is up and running. Devices are accessed either via a modem connection or over a TCP/IP network. These connections support DES, 3DES, AES or 128-bit SSL encryption of both KVM and Virtual Media sessions.
Product Type: KVM Switchbox
Technical Information
KVM Technology: Digital
Number of Computers Supported: 8
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Video
Graphic Mode: UXGA
Maximum Video Resolution: 1600 x 1200
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Physical Characteristics
Height: 1.7″
Width: 17″
Depth: 9.2″
Weight (Approximate): 6.60 lb
Miscellaneous
Country of Origin: United States
