Manufacturer: Dell Technologies
Manufacturer Part Number: MP-7800B
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell EMC
Product Line: Connectrix
Product Model: MP-7800B

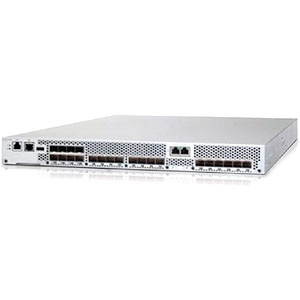

Product Name: Connectrix MP-7800B Fibre Channel Switch
Marketing Information:
The EMC Connectrix MP-7800B distance extension switch helps provide the fastest, most reliable, and most cost-effective network infrastructure for remote data replication, backup, and migration. Leveraging next-generation Fibre Channel and advanced FCIP technology, the MP-7800B provides a flexible and extensible platform to move more data faster and further than ever before. The switch features up to sixteen 8 Gb/s Fibre Channel ports and six 1 Gigabit Ethernet (GbE) ports to maximize application performance over wide area network (WAN) links. It supports a variety of architectures and deployment models to address current and future SAN extension requirements. A broad range of optional, advanced-extension, FICON, and SAN fabric services are available to address the most challenging extension and storage networking requirements.
Product Type: Fibre Channel Switch
Interfaces/Ports
Number of Fibre Channel Ports: 16
Media & Performance
Data Transfer Rate: 8.50 Gbit/s
Management & Protocols
Manageable: Yes
Power Description
Redundant Power Supply: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.8″
Width: 17″
Depth: 25.2″
Weight (Approximate): 24 lb
