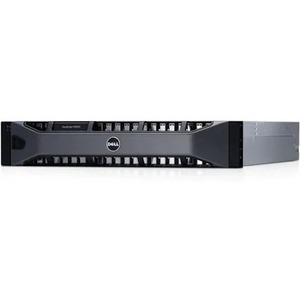

Dell EMC EqualLogic PS6210XV SAN/NAS Storage System

The Dell™ EqualLogic™ PS6210 arrays bring a new level of performance for your most demanding applications, while delivering the simplicity of the EqualLogic management experience.

Performance and efficiency simplified for the real world

The Dell EqualLogic PS6210 is an intelligent storage array, designed to provide simple management and seamless expansion using innovative Dell technology. EqualLogic PS Series storage arrays include SAN configuration features and capabilities that sense network connections, automatically build RAID sets, and conduct system health checks to help ensure that all components are fully functional. Based on a virtualized modular storage architecture that enables you to purchase only the storage you need – when you need it – the PS Series arrays help prevent both underutilization and overprovisioning in your data center. All PS Series arrays in a SAN work together to automatically manage data, load balance across all resources, and expand to meet your growing storage needs. With the addition of EqualLogic FS Series appliances, you can effectively store both block and file data in a unified storage solution.

EqualLogic products are designed to meet and exceed the rugged requirements of the data center including fault-tolerant capabilities through fully redundant and hot-swappable components: dual controllers, dual fan trays, dual power supplies, and disk drives with hot spares.

Build and scale the storage system you need

With choices in performance, capacity and networking, the EqualLogic PS6210 Series arrays offer enterprise-class storage features that are easy to operate and manage, and optimized for virtualization platforms and a variety of applications such as deployments of faster networking technology, server virtualization, VDI, OLTP (online transactional processing) database workloads, large block sequential workloads, and other high-IOPS workloads that are latency sensitive.

The SSD-enabled PS6210 arrays give customers flash at the price of disk with a new level of performance in the EqualLogic family: Twice the maximum IOPS as prior models for their most critical applications. All-flash PS6210S arrays provide load-balanced performance and dense SSD capacity that can be scaled out predictably. PS6210XS hybridflash arrays are ideal for VDI deployments, important databases and other mixed workloads, by providing auto-tiering for hot data.

Feature-rich software portfolio

The EqualLogic PS Series arrays include innovative firmware and host software with no additional cost or software licensing fees. EqualLogic’s latest firmware release offers new features so your hardware can meet your current needs and can grow with you as the demands of the virtual era increase.
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 24
Number of Hard Drives Installed: No
Total Hard Drive Capacity Supported: 7.20 TB
Number of Solid State Drive Supported: 24
Number of Solid State Drive Installed: No
Total Solid State Drive Capacity Supported: 7.20 TB
Network & Communication
Ethernet Technology:

• 10 Gigabit Ethernet
• Fast Ethernet

I/O Expansions
Number of Total Expansion Bays: 24
Number of 2.5″ Bays: 24
Controllers
Number of Controllers: 2
Controller Type: Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 6, 10, 50
Interfaces/Ports
Drive Interface: Serial Attached SCSI (SAS)
Network (RJ-45): Yes
Management & Protocols
Protocols:

• iSCSI
• IPv4
• IPv6
• SNMP
• Telnet
• SSH
• HTTP
• SSL
• CHAP
• LDAP

Power Description
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 700 W
Redundant Power Supply: Yes
Physical Characteristics
Height: 3.4″
Width: 17.6″
Depth: 21.5″
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 58.20 lb
