Manufacturer: Dell Technologies
Manufacturer Part Number: X200-SATA-012
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell EMC
Product Line: Isilon
Product Series: X
Product Model: X200

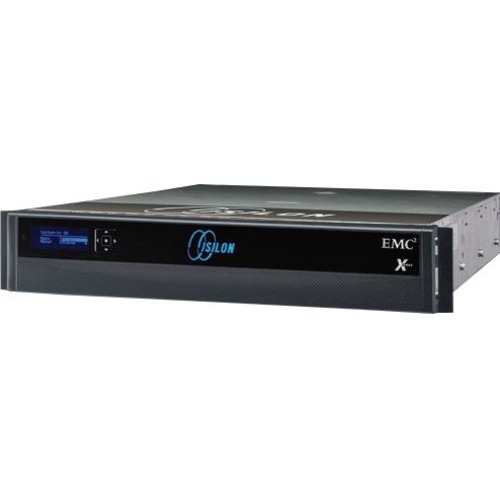

Product Name: Isilon X200 SAN/NAS Server
Marketing Information:
The Isilon X200, powered by the OneFS® operating system, uses Isilon’s powerful yet simple scale-out storage architecture to speed access to massive amounts of critical data, while dramatically reducing cost and complexity. The Isilon X200 delivers a flexible solution to accelerate your high-concurrent and sequential-throughput applications. In addition, with SSD technology for file-system metadata and file-based storage workflows, the Isilon X200 significantly accelerates namespace intensive operations.
Agility and Flexibility: The Isilon X200 is the first unified scale-out storage solution capable of scaling from a few terabytes to multiple petabytes and over 30 gigabytes per second (GBps) of throughput, all within a single file system. On-the-fly scaling enables your organization to quickly grow capacity and performance linearly or independently, for ultimate agility.
Simplicity: Isilon’s modular architecture and intelligent software make deployment and management simple. Once racked, you can have an X200 cluster online in less than 10 minutes, without time-consuming, expensive integration services. An X200 cluster provides a single pool of storage with a global namespace, eliminating the need to support multiple volumes and file systems.
High Efficiency: Isilon unified scale-out storage delivers much higher utilization rates than traditional NAS or SAN storage – over 80 percent versus 50 percent for competing solutions. That translates into greater overall efficiency, resulting in lower acquisition, operating, and maintenance costs. Low power consumption and maximum density further ensure the ultra-low overhead of Isilon storage.
The Isilon X200 provides the performance, scalability, and agility to conquer your storage challenges.
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Installed: 12
Total Hard Drive Capacity Installed: 24 TB
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Core: Quad-core (4 Core)
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Controllers
Controller Type: Serial ATA/300
Interfaces/Ports
Network (RJ-45): Yes
Software
Operating System: OneFS
Management & Protocols
Protocols:
- CIFS/SMB
- SMB 2.0
- NFSv3
- CIFS
- LDAP
- NFSv4
- NFS
- FTP
- NDMP
- UDP
- SNMP
- HTTP
- iSCSI
- TCP/IP
Physical Characteristics
Height: 3.5″
Width: 18.9″
Depth: 28.5″
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 58.20 lb
