Manufacturer: Dell Technologies
Manufacturer Part Number: PowerEdge R330
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell EMC
Product Line: PowerEdge
Product Model: R330

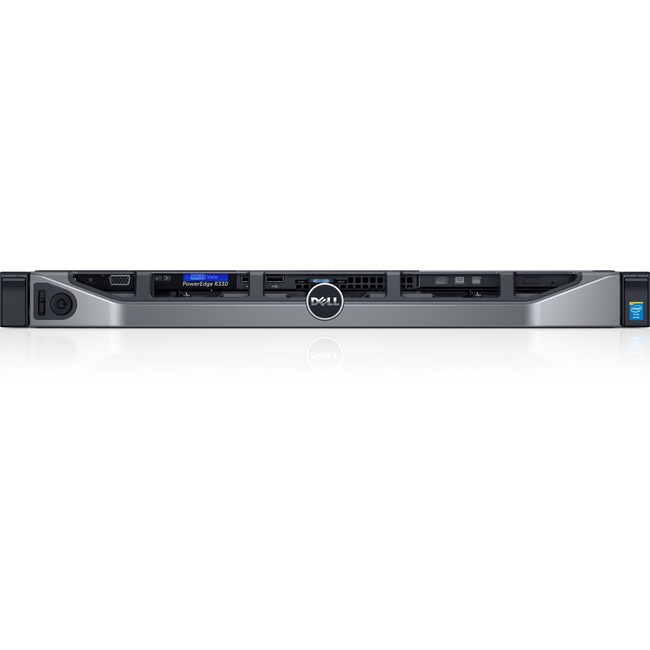

Product Name: PowerEdge R330 Server
Marketing Information:
Powerful and versatile 1-socket rack server for small and medium businesses (SMB) and remote office/branch office (ROBO).
The Dell EMC PowerEdge R330 is an excellent first server or replacement server for SMB and also highly attractive as an affordable ROBO server for large institutions. Compared to the previous-generation PowerEdge R320, the R330 supports DDR4 memory vs. DDR3, PERC9 vs. PERC8, the integrated Dell Remote Access Controller 8 (iDRAC8) vs. iDRAC7, and an Intel® Xeon® E3 processor vs. an Intel Xeon E5 in the previous-generation server.
Discover greater versatility
Harness data growth with up to four internal 3.5-inch cabled or hotplug hard drives, or up to eight 2.5-inch hot-plug hard drives. Grow memory capacity through time with four DIMM slots supporting up to 64GB of DDR4 memory to drive application performance and rapid response times. Adapt flexibly to changing workload conditions with a virtualization-ready server supporting Microsoft® Windows Server® with Hyper-V®, VMware® vSphere® ESXi® and Red Hat® Enterprise Virtualization.
Deliver powerful performance
Accelerate system boot time with up to two optional 1.8-inch SSDs. Drive 50% faster clock speed with enhanced DDR4 memory compared to DDR3, which is 12.5% faster than the initial 2133 MT/s implementation of DDR4. Boost I/O data throughput with two PCIe 3.0 slots for 2x data throughput compared to PCIe 2.0. Deliver 2x IOPS performance with R330/PERC9 compared to the previousgeneration R320/PERC8.
Maximize operational efficiency
Deploy smoothly and rapidly with Dell OpenManage systems management solutions. Easily monitor system health and behavior with simple, intuitive OpenManage Essentials console. Gain additional levels of convenience and high availability protection with hot-plug hard drives and power supplies.
Innovative management with intelligent automation
The Dell OpenManage systems management portfolio includes innovative solutions that simplify and automate management tasks, making IT operations more efficient and more cost-effective throughout the server lifecycle. Leveraging the incomparable agentfree capabilities of the embedded iDRAC with Lifecycle Controller, server deployment, configuration and updates are rapid and worryfree. Remote monitoring and control of the R330 is provided by OpenManage Essentials and can also enable anytime, anywhere mobile access through OpenManage Mobile.
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Manufacturer: Intel
Chipset
Chipset Manufacturer: Intel
Chipset Model: C236
Memory
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Number of Total Memory Slots: 4
Controllers
Controller Type:
- Serial ATA/600
- 6Gb/s SAS
RAID Supported: Yes
I/O Expansions
Number of Total Expansion Slots: 2
PCI Express Details: 2 x PCIe 3.0 slots + 1 slot for internal storage
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Network (RJ-45): Yes
Operating System
Operating System Supported:
- Windows Server 2016
- Windows Server
- Red Hat Enterprise Linux
- SuSE Linux Enterprise Server
Power Description
Number of Power Supplies Supported: 2
Maximum Power Supply Wattage: 350 W
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Height: 1.7″
Width: 19″
Depth: 26.7″
Weight (Approximate): 14.11 lb
