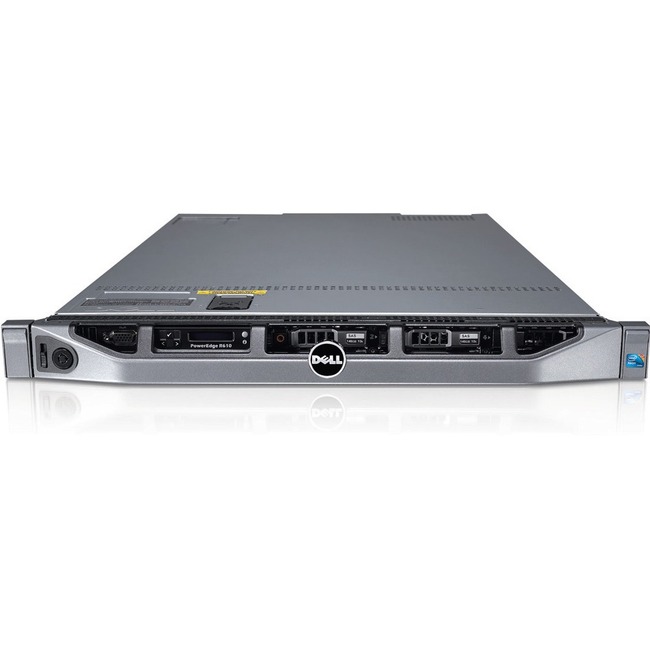

Dell EMC PowerEdge R610 1U Rack Server – Intel Xeon – Serial ATA/600, 6Gb/s SAS Controller

Strong IT Foundation

The Dell PowerEdge R610 is a key building block for today’s data center. Designed for versatility and high performance, it provides many of the virtualization, system management, and energyefficiency features you need now and the scalability necessary to change as your business grows. This general purpose Intel® processor-based 2-socket 1U server is ideal for corporate data centers and remote sites that require a dense, highly available single- or dual-processor server at an excellent value.

Purposeful Design

The PowerEdge R610 follows the 11th generation PowerEdge portfolio specifications and features the same system design commonality and reliability true to the entire portfolio. All 11th generation servers are designed to make the experience easier. We put all external ports, power supplies, LCD screens, and LED lights in the same location for familiar experience as well as easy installation and deployment.

Robust, metal hard drive carriers and organized cabling are designed to help improve component access and airflow across the server. The PowerEdge R610 provides an interactive LCD screen or LED display positioned on the front of the server for ease of monitoring and troubleshooting condition of the server.

Enhanced Virtualization

Featuring Intel® Xeon® processor-based architecture, embedded hypervisors, and expanded memory footprint and I/O, the Dell PowerEdge R610 delivers exceptional overall system performance and significant virtual machine-per-server capacity versus the previous generation. With optional factory-integrated virtualization capabilities, you get tailored solutions-built with the latest technologies from Dell and our trusted partners-which allow you to streamline deployment and simplify virtual infrastructures. Choose your hypervisor from market leaders such as VMware®, Citrix®, and Microsoft®, and enable virtualization with a few mouse clicks.

Energy-Optimized Technologies

Dell’s advanced thermal control helps optimize performance while minimizing system power consumption, ultimately driving energy efficiency across our latest core data center servers. These enhancements, over previous generations, include efficient power supply units right-sized for system requirements, improved system-level design efficiency, policy-driven power and thermal management, and highly efficient standards-based Energy Smart components. Dell’s advanced thermal control is designed to deliver optimal performance at minimum system and fan power consumption resulting in our quietest mainstream 1U servers to date.

Simplified Systems Management

With the optional advanced embedded systems management capabilities of Lifecycle Controller, Dell provides comprehensive enterprise class manageability already on the motherboard. Lifecycle Controller is delivered as part of the optional iDRAC Express or iDRAC Enterprise in the PowerEdge R610. The Lifecycle Controller helps to simplify administrator tasks by performing a comprehensive set of provisioning functions such as system deployment, system updates, hardware configuration and diagnostics from a single intuitive interface called Unified Server Configurator (USC) in a pre-OS environment. This helps eliminate the need to use and maintain multiple pieces of disparate CD/DVD media.
Product Type: Server
Processor
Number of Processors Supported: 2
Processor Manufacturer: Intel
Processor Type: Xeon
Chipset
Chipset Manufacturer: Intel
Chipset Model: 5520
Memory
Maximum Memory Supported: 192 GB
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 12
Controllers
Controller Type:

• Serial ATA/600
• 6Gb/s SAS

RAID Supported: Yes
I/O Expansions
Number of Total Expansion Bays: 7
Number of External 5.25″ Bays: 1
Number of Internal 2.5″ Bays: 6
Hot Swappable Bays: Yes
Number of Total Expansion Slots: 2
PCI Express x4 (Gen 3.x) Slots: 1
PCI Express x8 (Gen 3.x) Slots: 1
PCI Express Details: 2 x PCIe x8; full height, half length
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 5
Network (RJ-45): Yes
Operating System
Operating System Supported:

• Windows Small Business Server 2011
• Windows Small Business Server 2008
• Windows Server 2008 x64
• Windows Server 2008
• Windows Server 2008 R2 x64
• Red Hat Enterprise Linux
• SuSE Linux Enterprise Server
• Citrix XenServer
• Windows HPC Server 2008 R2
• Solaris

Power Description
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 717 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Height: 1.7″
Width: 19″
Depth: 30.4″
Weight (Approximate): 39 lb
