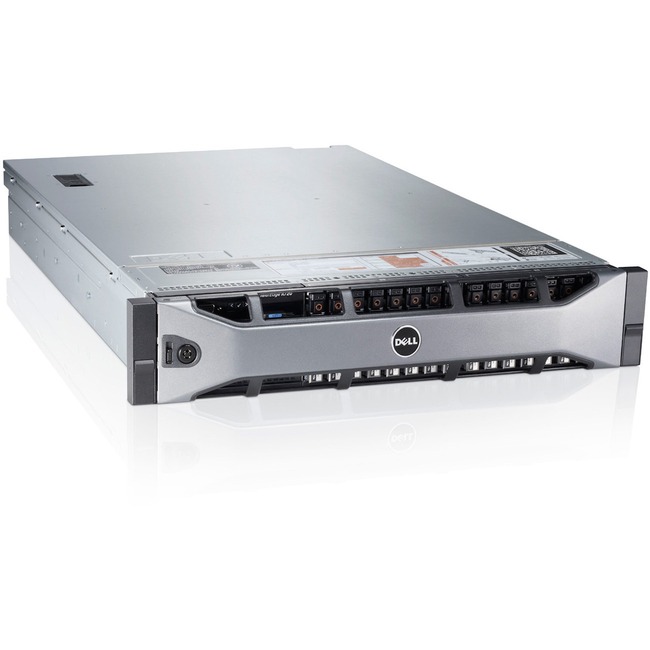

Dell EMC PowerEdge R720 2U Rack Server – Intel Xeon – Serial ATA/600, 6Gb/s SAS Controller

Setting the standard for feature flexibility in a 2-socket, 2U rack server, the Dell™ PowerEdge™ R720 is built to run complex workloads using its highly scalable memory, I/O capacity and flexible network options.

Designed to excel at running a wide range of applications and virtualization environments for both mid-size and large enterprises, the Dell PowerEdge R720 rack server is a general purpose platform with highly expandable memory (up to 768GB) and impressive I/O capabilities to match. With Intel® Xeon® E5-2600 processors, and the ability to support dual RAID controllers, the R720 can readily handle very demanding workloads, such as data warehouses, e-commerce, virtual desktop infrastructure (VDI), databases and high performance computing (HPC) as a data node.

Manage data overload

Keep pace with the explosion of data in the virtual age with the flexible, powerful I/O and storage capabilities of the R720. Up to 16 internal hard drives and integrated PCI Express® 3.0-capable expansion slots greatly increase your capacity, while optional hot-plug, front-access PCIe SSDs (up to 4) enable performance-enhancing, in-box storage tiering. Moreover, Dell Select Network Adapters, our flexible NIC technology, let you choose the right network fabric to match your needs without using up a valuable PCIe slot.

Accelerate the solution

Boost the performance of your HPC or VDI environment by combining the PowerEdge R720’s memory density with an optional GPU accelerator (some with over 500 cores). Choose from a range of GPU options for greater assisted performance.

Virtualize more with the R720

Maximize your data center’s application capacity by expanding your virtual environment using the PowerEdge R720’s large memory footprint. Choose an industry-leading hypervisor and take advantage of our system management capability to manage both physical and virtual assets. The R720 can help maximize your virtual machines’ uptime with redundant failsafe hypervisors. Finally, Dell’s Virtual Integrated System™ (VIS) solution lets you enable complex virtualization environments in just a few mouse clicks.

The PowerEdge server line

The PowerEdge family is engineered with the right combination of features and performance scalability to handle tough workloads for both large and small data center environments.

The Dell OpenManage™ systems management portfolio includes the Integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller. This embedded feature helps IT Administrators manage Dell servers in physical, virtual, local and remote environments, operating in-band or out-of-band, with or without a systems management software agent. OpenManage integrates and connects to third-party systems management solutions so you can maintain your single point of control and capitalize on your existing investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring and maintaining your Dell PowerEdge servers.

Product Type: Server
Processor
Number of Processors Supported: 2
Processor Manufacturer: Intel
Processor Type: Xeon
Chipset
Chipset Manufacturer: Intel
Chipset Model: C600
Memory
Maximum Memory Supported: 768 GB
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 24
Controllers
Controller Type:

• Serial ATA/600
• 6Gb/s SAS

RAID Supported: Yes
I/O Expansions
Number of Total Expansion Slots: 7
PCI Express x8 (Gen 3.x) Slots: 6
PCI Express x16 (Gen 3.x) Slots: 1
PCI Express Details: One x16 full-length, full-height ? Three x8 full-length, full-height ? Three x8 half-length, half-height
Network & Communication
Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Interfaces/Ports
Network (RJ-45): Yes
Operating System
Operating System Supported:

• Windows Server 2008
• Windows Server 2008 x64
• SuSE Linux Enterprise Server
• Red Hat Enterprise Linux
• Citrix XenServer
• Windows Server
• Windows Small Business Server 2011

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Number of Power Supplies Supported: 2
Maximum Power Supply Wattage: 1100 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes
Physical Characteristics
Form Factor: Rack
Rack Height: 2U
Height: 3.4″
Width: 19″
Depth: 28.5″
Weight (Approximate): 65.04 lb
