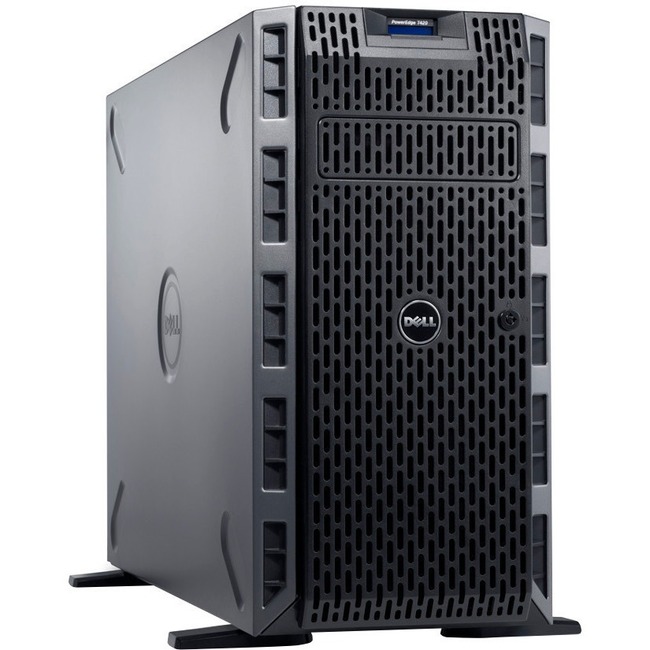

Dell EMC PowerEdge T420 5U Tower Server – Intel Xeon – 6Gb/s SAS Controller

The Dell PowerEdge T420 is a powerful and reliable 2-socket tower server that delivers performance and built-in capacity for non-disruptive growth. The T420’s acoustical profile allows it to fit unobtrusively into quiet office environments and data centers alike. This tower server is an excellent fit for generalpurpose small and medium business workloads such as database, file and print sharing, retail and email. The T420 also fulfills platform needs in small offices with the growing trend of virtual desktop infrastructure (VDI). Hot pluggability of key components, combined with leading manageability, make it an excellent server for branch offices and other remote sites where IT skills might not be present. Consistent worldwide support makes it highly appealing to multinational businesses and organizations with remote offices.

A versatile workhorse

Featuring the extensive performance of two Intel® Xeon® E5-2400 processors, and complemented by substantial memory capacity and broad I/O bandwidth, the T420 provides high, balanced performance and built-in room for growth. Its twelve DIMM slots and six PCIe slots provide memory density and wide I/O bandwidth to support both memory-intensive and data-intensive applications and databases. Built-in capacity for up to eight 3.5-inch or sixteen 2.5-inch hard drives accommodate data storage as your business or organization grows. These combined technology features are necessary to support consolidated and virtualized environments, a role in which the T420 also shines.

To protect your virtualized workloads, the PowerEdge T420 offers dual SD media making your hypervisors redundant and failsafe. Other reliability and availability features include hot-plug hard drives, both hardware and software RAID options, redundant fans and hot-plug power supplies.

The PowerEdge server line

The PowerEdge family is engineered with the right combination of features and performance scalability to handle tough workloads for businesses and organizations of all sizes.

The Dell OpenManage™ systems management portfolio includes integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller. This embedded feature helps IT administrators manage Dell servers in physical, virtual, local and remote environments, operating in-band or out-of-band, with or without a systems management software agent. OpenManage also integrates and connects to third-party systems management solutions so you can maintain your single point of control and capitalize on your existing investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring, and maintaining your Dell PowerEdge servers.
Product Type: Server
Processor
Number of Processors Supported: 2
Processor Manufacturer: Intel
Processor Type: Xeon
Chipset
Chipset Manufacturer: Intel
Memory
Maximum Memory Supported: 384 GB
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 12
Error Checking: ECC
Controllers
Controller Type: 6Gb/s SAS
RAID Supported: Yes
I/O Expansions
Number of Total Expansion Slots: 6
PCI Express x8 (Gen 3.x) Slots: 4
PCI Express x16 (Gen 3.x) Slots: 2
PCI Express Details: Two x16 slots with x16 bandwidth, 3.0, full-length, full-height , One x8 slot with x4 bandwidth, 3.0
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Network (RJ-45): Yes
Operating System
Operating System Supported:

• Windows Server 2008 x64
• Windows Server
• Hyper-V
• Red Hat Enterprise Linux
• Citrix XenServer
• SuSE Linux Enterprise Server
• Windows Server 2008 R2 x64

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Maximum Power Supply Wattage: 1100 W
Physical Characteristics
Form Factor: Tower
Rack Height: 5U
Height: 16.9″
Width: 8.6″
Depth: 22″
Weight (Approximate): 66.49 lb
