Manufacturer: Dell Technologies
Manufacturer Part Number: N2128PX-ON
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell EMC
Product Line: PowerSwitch
Product Series: N2000
Product Model: N2128PX-ON

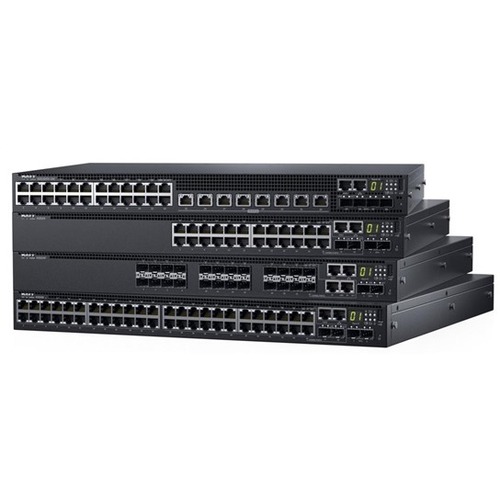

Product Name: PowerSwitch N2128PX-ON Ethernet Switch
Marketing Information: Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure
The N2000 switch series offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. With high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to easily handle unexpected traffic loads, the switches offer simple management and scalability via an 84Gbps (fullduplex) high availability stacking architecture that allows management of up to twelve switches from a single IP address. An integrated 80PLUScertified power supply and features such as Energy-Efficient Ethernet and short cable detection provide energy efficiency to help decrease power and cooling costs.
Modernize campus network architectures
Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with Power over Ethernet Plus (PoE+). Select N2000 models offer 24 or 48 ports of PoE+ to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, N2000 switches offer the latest open-standard protocols and include technology to interface with Cisco protocol RPVST+ and devices using CDP.
Leverage familiar tools and practices
All N-Series switches include Dell EMC Networking OS6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. One common command line interface (CLI) and graphic user interface (GUI) using a well-known command language gets skilled network administrators productive quickly. With USB auto-configuration, network administrators can rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key.
Deploy with confidence at any scale
N2200-ON series switches help create performance assurance with a data rate up to 220Gbps (full duplex) and a forwarding rate up to 256Mpps. Scale easily with built-in rear stacking ports. Switch stacks of up to 600 1GbE ports can be managed from a single screen using the highly available stacking architecture for high-density aggregation with seamless redundant availability.
N-Series switches help provide certainty with a lifetime warranty that covers software upgrades, hardware repair or replacement, and optics and cables purchased with the switch.
Hardware, performance and efficiency
- Up to 48 line-rate GbE RJ-45 ports and two integrated 10GbE SFP+ ports.
- Support for 24 ports of PoE+ in 1RU or up to 48 ports of PoE+ with an optional external power supply.
- N2128PX-ON supports PoE 60W over its 4 2.5GbE ports, delivering up to 60W per port and bandwidth for Wave 2 wireless.
- Up to 600 1GbE ports in a 12-unit stack for high-density, high-availability in IDFs, MDFs and wiring closets.
- Non-stop forwarding and fast failover in stack configurations.
- Energy-Efficient Ethernet and lower power PHYs reduce power to inactive ports and idle links, providing energy savings from the power cord to the port.
- Dell Fresh Air compliance for operation in environments up to 113°F (45°C) helps reduce cooling costs in temperature constrained deployments.
Deploying, configuring and managing
- USB auto-configuration rapidly deploys the switch without complex TFTP configurations or sending technical staff to remote offices.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet PoE+
- 2 x 10 Gigabit Ethernet Expansion Slot
- 2 x Stack
- 4 x 2.5 Gigabit Ethernet PoE
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
- 2.5 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-X
- 2.5GBase-T
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 30.80 W
Power Source:
- Power Supply
- PoE+
Number of Power Supplies Installed: 1
Power Consumption: 1039.80 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 15.2″
Weight (Approximate): 15.05 lb
Miscellaneous
Package Contents:
- PowerSwitch N2128PX-ON Ethernet Switch
- RJ-45 to Female DB-9 Connector Cable
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- EU WEEE
- Battery Directive
- REACH
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
