Manufacturer: Dell Technologies
Manufacturer Part Number: N3132PX-ON
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell EMC
Product Line: PowerSwitch
Product Series: N3000
Product Model: N3132PX-ON
Product Name: PowerSwitch N3132PX-ON Ethernet Switch
Marketing Information: Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure

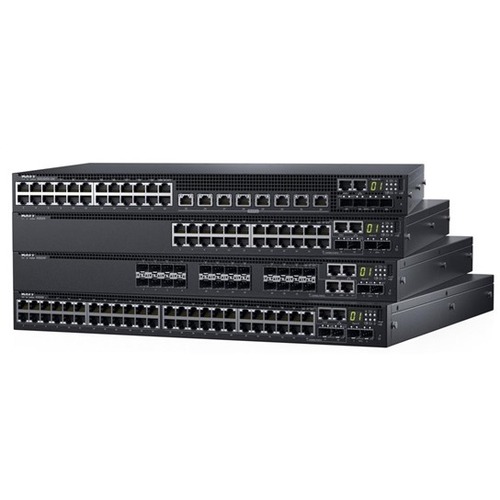

The N3000E switch series offers a power-efficient and resilient Gigabit Ethernet GbE) switching solution with integrated 10GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The series has high-performance capabilities and wirespeed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via an 84Gbps (full duplex) high-availability stacking architecture that allows management of up to 12 switches from a single IP address. Note: With OS 6.5.1.x and higher, max stack for N3000 series is 8; however, N3000E series and N3132PX-ON support max stack of 12 members. N3000 series can be stacked with N3000E series; however, stack size is limited to 8 and active VLANs to 1024.
Modernize campus network architectures
Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE+) and PoE 60W. Select N3000E models offer 24 or 48 ports of PoE+, or up to 32 ports of PoE 60W to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, N3000E series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol RPVST+ and devices using CDP.
Achieve high availability and full bandwidth utilization with Multichassis Link Aggregation (MLAG). N3000E series switches support MLAG to create active/active loop-free redundancy without spanning tree. Server rooms can deliver reliable server and storage connectivity with features to help save time and avoid configuration errors. N3000E supports VRF-lite, allowing it to be partitioned into multiple virtual routers with isolated control and data planes on the same physical switch.
Leverage familiar tools and practices
All N-Series switches include Dell EMC Networking OS6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. OS6 common command line interface (CLI) and graphic user interface (GUI) are intuitive, so skilled network administrators can get productive quickly. Select N3000E switches now support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.
Deploy with confidence at any scale
N3000E series switches help create performance assurance with a data rate up to 328Gbps (full duplex) and a forwarding rate up to 428Mpps. Scale easily with built-in rear stacking ports. Switch stacks of up to 624 1GbE ports can be managed from a single screen using the highly available stacking architecture for high-density aggregation with seamless redundant availability. The N-Series switches’ lifetime warranty covers software upgrades, hardware repair or replacement, and optics and cables purchased with the switch.
Hardware, performance and efficiency
- Up to 48 line-rate GbE ports of copper or fiber, two combo ports for fiber/copper flexibility, and two integrated 10GbE SFP+ ports.
- Up to 48 ports of PoE+ or 32 ports of PoE 60W in 1RU without an external power supply.
- Up to eight 2.5/5GbE ports delivering additional bandwidth for Wave 2 wireless access points.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 32
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet PoE
- 8 x 5 Gigabit Ethernet PoE
- 4 x 10 Gigabit Ethernet Expansion Slot
- 1 x Expansion Slot
- 2 x Stack
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 5GBase-T
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 7
Expansion Slot Type:
- SFP+
- Stacking Module
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 60 W
Power Source: Power Supply
Number of Power Supplies Installed: 1
Power Consumption: 2115 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Rail-mountable
Height: 1.7″
Width: 17.1″
Depth: 16″
Weight (Approximate): 15.70 lb
Miscellaneous
Package Contents:
- PowerSwitch N3132PX-ON Ethernet Switch
- 1 x 1100W PSU
- RJ-45 to Female DB-9 Connector Cable
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- REACH
- EU WEEE
- Battery Directive
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
