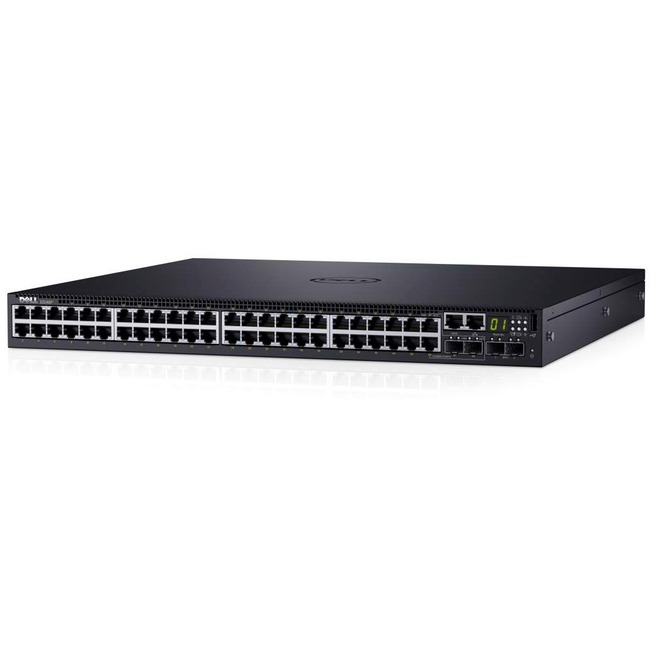

Dell EMC PowerSwitch S3148P Ethernet Switch

The S3100 switch series offers a power-efficient and resilient Gigabit Ethernet (GbE) switching solution with integrated 10GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The S3100 switch series has high-performance capabilities and wire-speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via an 84Gbps (fullduplex) high-availability stacking architecture that allows management of up to 12 switches from a single IP address.

Modernize campus network architectures

Modernize campus network architectures with a powerefficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE+). Select S3100 models offer 24 or 48 ports of PoE+ to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, S3100 series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol PVST+. The S3100 series supports Dell Networking OS9, VLT and network virtualization features such as VRF-lite and support for Dell Embedded Open Automation Framework.

Leverage familiar tools and practices

All S3100 switches include Dell Networking OS9 for easier deployment and greater interoperability. One common command line interface (CLI) using a well-known command language means a faster learning curve for network administrators.

Deploy with confidence at any scale

S3100 series switches help create performance assurance with a data rate up to 260Gbps (full duplex) and a forwarding rate up to 193Mpps. Scale easily with built-in rear stacking ports. Switch stacks of up to 624 ports can be managed from a single screen using the highly-available stacking architecture for high-density aggregation with seamless redundant availability.

Hardware, performance and efficiency

• Up to 48 line-rate GbE ports of copper or 24 line-rate ports of fiber, two combo ports for fiber/copper flexibility, and two integrated 10GbE SFP+ ports
• Up to 48 ports of PoE+ in 1RU without an external power supply
• Hot swappable expansion module supporting dual-port SFP+ or dual-port 10GBaseT
• Integrated stacking ports with support up to 84Gbps
• Up to 624 ports in a 12-unit stack for high-density, highavailability aggregation and distribution in wiring closets/ MDFs. Non-stop forwarding and fast failover in stack configurations
• Available with dual 80PLUS-certified hot swappable power supplies. Variable speed fan operation helps decrease cooling and power costs
• Energy-Efficient Ethernet and lower-power PHYs reduce power to inactive ports and idle links, providing energy savings from the power cord to the port
• Dell Fresh Air compliance for operation in environments up to 113°F (45°C) helps reduce cooling costs in temperature constrained deployments

Deploying, configuring and managing

• Tool-less ReadyRails™ significantly reduces rack installation time
• Management via an intuitive and familiar CLI, SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection
• Private VLAN support
• AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

• 48 x Gigabit Ethernet PoE+
• 2 x 10 Gigabit Ethernet Expansion Slot
• 2 x Gigabit Ethernet TP/SFP Combo
• 1 x Expansion Slot
• 2 x Stack

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 1000Base-X
• 10GBase-X

I/O Expansions
Number of Total Expansion Slots: 5
Expansion Slot Type:

• SFP+
• SFP (mini-GBIC)

Shared SFP Slot: Yes
Number of SFP Slots: 2
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Power Consumption: 2145 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Rail-mountable

Height: 1.7″
Width: 17.1″
Depth: 16″
Weight (Approximate): 15.21 lb
Miscellaneous
Package Contents:

• PowerSwitch S3148P Ethernet Switch
• 1 x 1100W PSU
• RJ-45 to Female DB-9 Connector Cable

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
